CDM-840 Remote Router Revision 2
Ethernet-based Remote Product Management MN-CDM840
6–25
6.4.4.5.2 Configuration | WAN Pages
The BUC and LNB tabs are functional ONLY when those optional products are
installed.
Click the Configuration | WAN tabs, and then select the Demod, Mod, QoS, Label,
Compression, BUC, or LNB tab to continue.
6.4.4.5.2.1 Configuration | WAN | Demod (Demodulator) Pages
Click the Configuration | WAN | Demod tabs, and then select the Config or ACM tab to
continue.
6.4.4.5.2.1.1 Configuration | WAN | Demod | Config
Use this page to configure CDM-840 Rx demodulator operations.

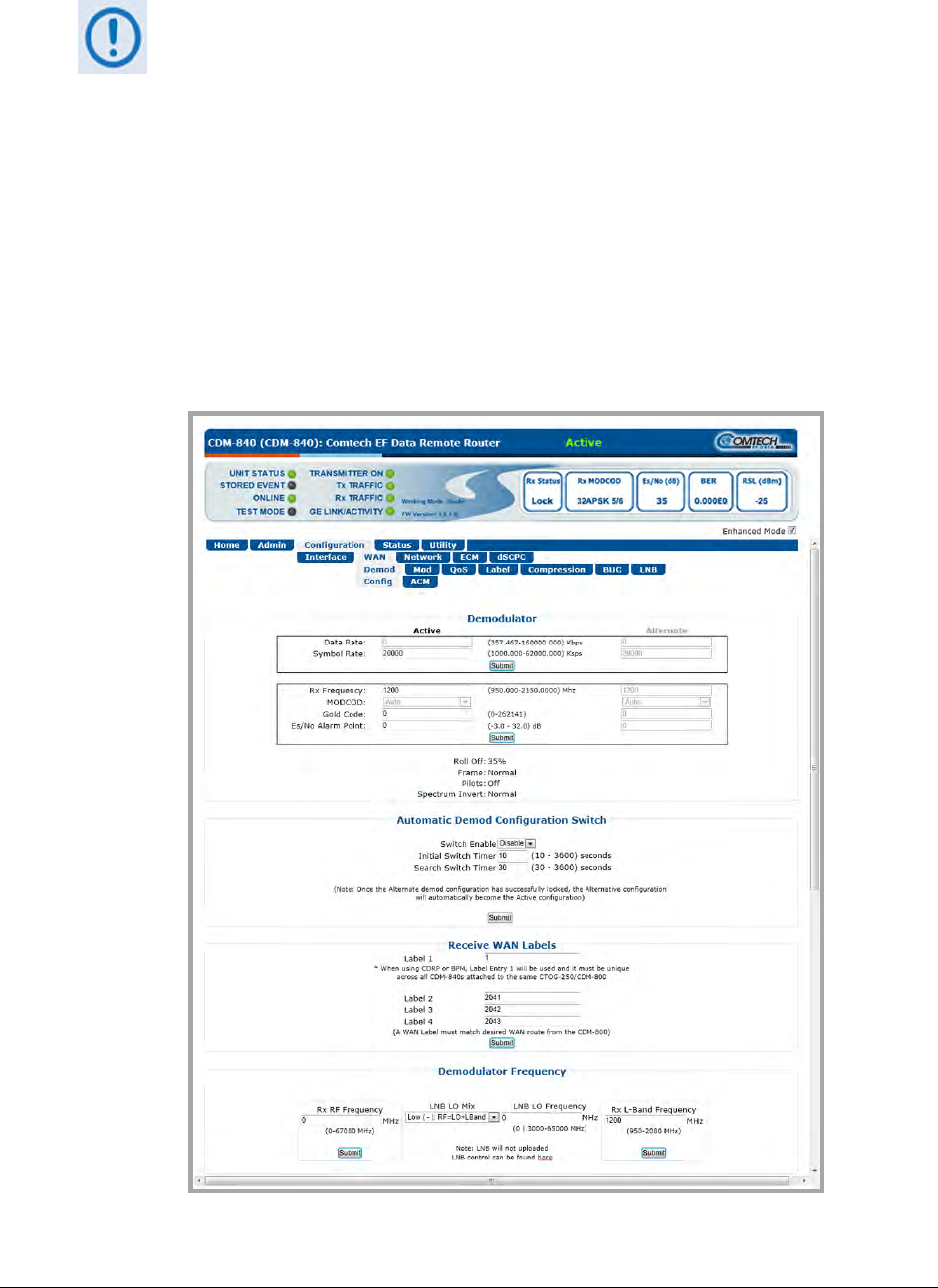

Figure 6-13. Configuration | WAN | Demod | Config Page
