CDM-840 Remote Router Revision 2
Updating Firmware MN-CDM840
4–10
B. Reboot the CDM-840:
• Go to either the CDM-840 Web Server Interface ‘Admin | Firmware’ page or the
‘Utility | Reboot’ page.

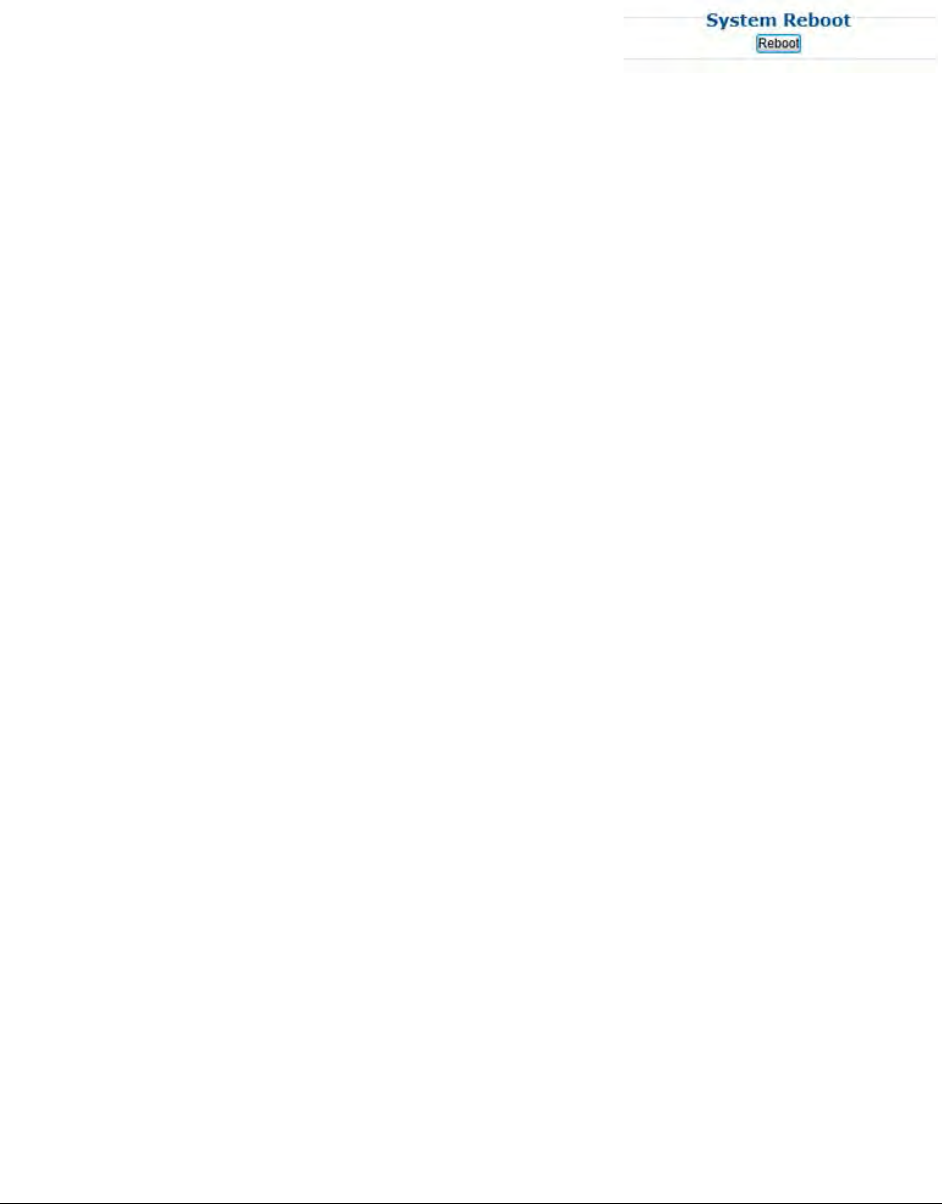

• Click [Reboot] (in the System Reboot section)
and [OK] when prompted, and then wait while
the CDM-840 reboots.
The CDM-840 is now operating with its latest firmware. The firmware update process is now
complete.
