CDM-840 Remote Router Revision 2
Ethernet-based Remote Product Management MN-CDM840
6–15
6.4.4.4.1 Admin | Auto Logout
Use this page to incorporate the Auto Logout security measure.

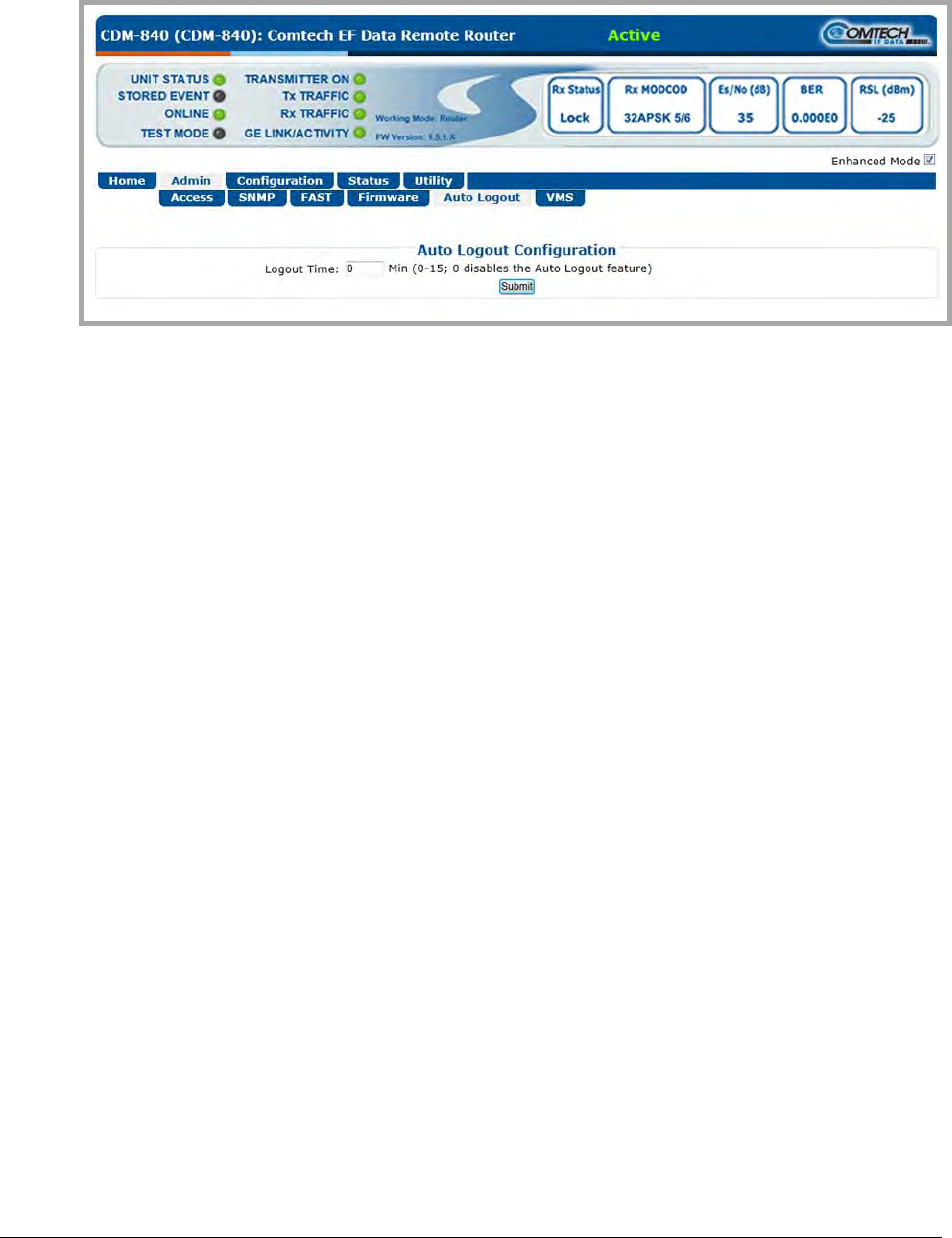

Figure 6-7. Admin | Auto Logout Page
Auto Logout Configuration
Set an automatic logout time to safeguard access to an already logged-in unit:
• Enter a value from 1 to 15 minutes into the Logout Time box to configure this feature.
• Enter a value of 0 to disable this feature.
Click [Submit] to save the desired configuration.
With Auto Logout configured, the active session terminates if the unit remains idle (i.e., when
no user activity occurs) beyond the assigned Logout Time. A valid user name and password is
then required to resume the CDM-840 Web Server Interface session.
