CDM-840 Remote Router Revision 2
Ethernet-based Remote Product Management MN-CDM840
6–67
Click the (Link to QoS Configuration page) hyperlink to access the Configuration | WAN |QoS
page (Sect.
6.4.4.5.2.3).

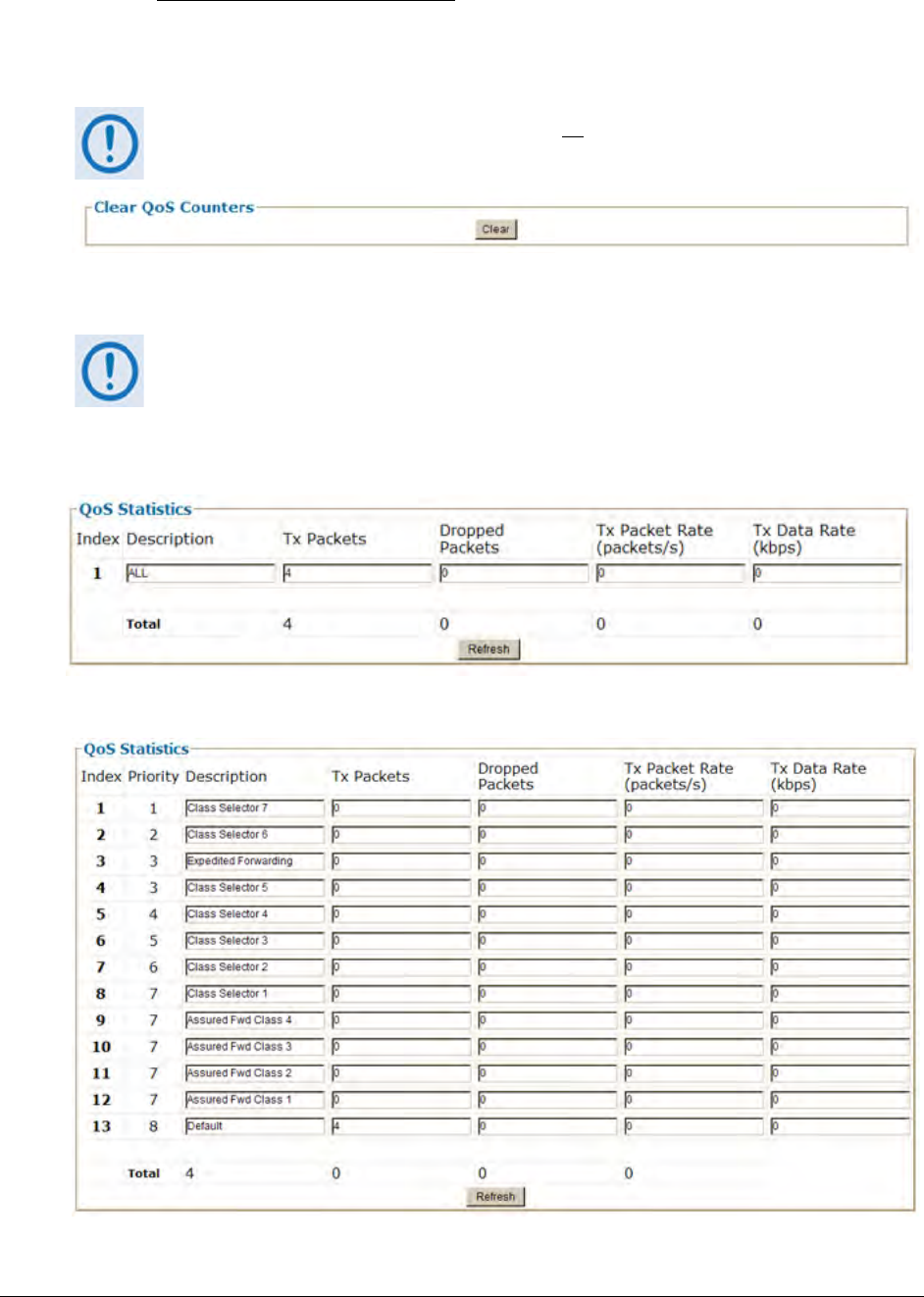

Clear QoS Counters
The Clear QoS Counters section is typical for all page configurations. Click [Clear] to
clear all operational statistics from the buffer.
QoS Statistics
The appearance of the QoS Statistics section differs depending on the active page
configuration. See the Configuration | WAN | QoS
page for the definition of the
terms used in this table. Click [Refresh]
to update this section with the latest
available statistics.
When QoS Control Mode is set to Off, Max/Pri or Min/Max:
When QoS Control Mode is set to DiffServ:
