CDM-840 Remote Router Revision 2
Rear Panel Connections MN-CDM840
3–8

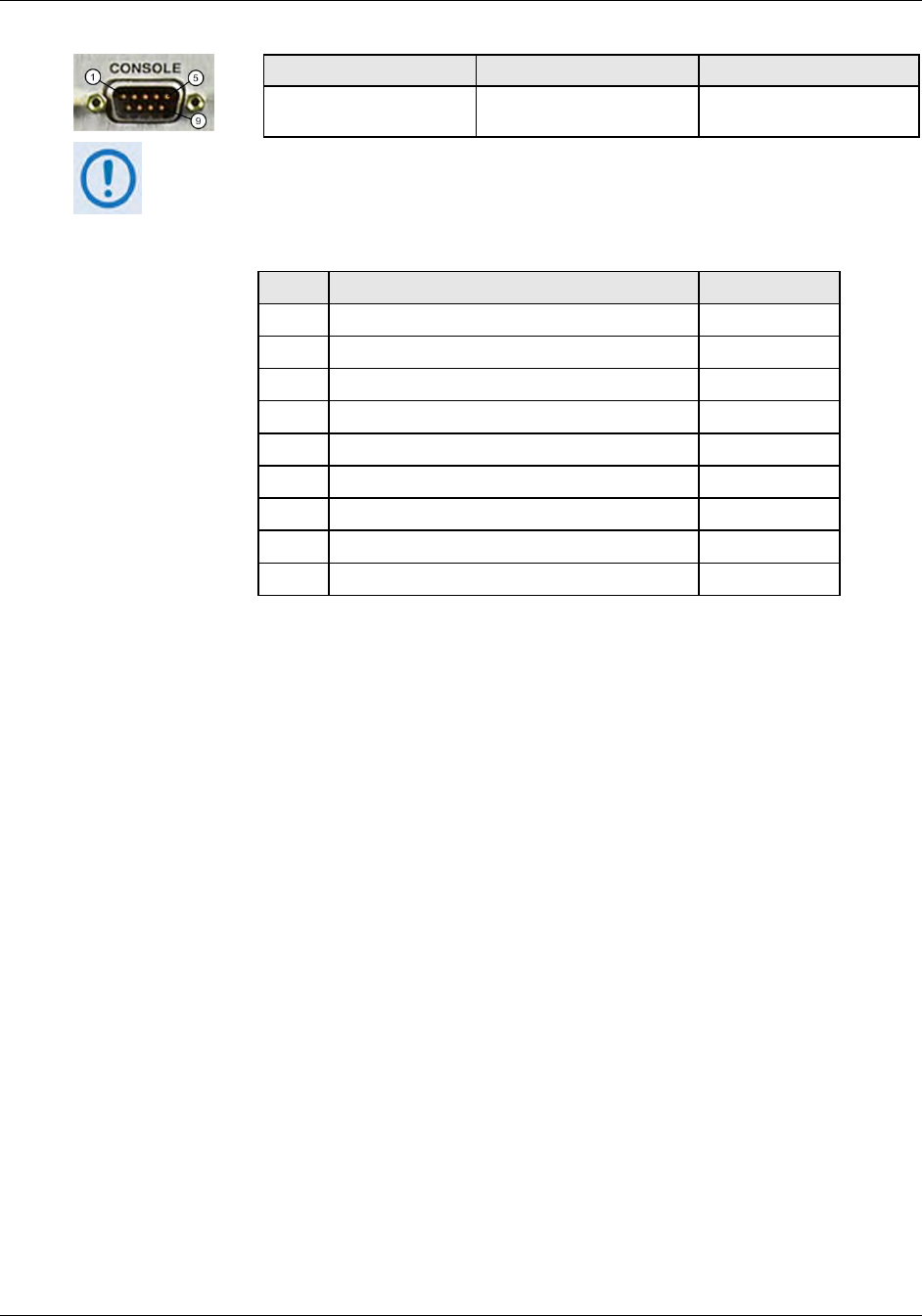

3.2.3.3 ‘CONSOLE’ Interface Connector
Connector Type Name Direction
Type ‘D’ 9-pin male
CONSOLE In/Out
This interface is used for EIA-232 communications. It is intended for connection to an
M&C computer or VT (Video Terminal) device.
Table 3-2. CONSOLE Connector Pinouts
Pin # Description Direction
1
Ground
–
6
Reserved - do not connect to this pin –
2
EIA-232 Transmit Data Out
7
Reserved - do not connect to this pin –
3
EIA-232 Receive Data In
8
Reserved - do not connect to this pin –
4
Reserved - do not connect to this pin –
9
Reserved - do not connect to this pin –
5
–
