CDM-840 Remote Router Revision 2
Ethernet-based Remote Product Management MN-CDM840
6–12
6.4.4.3 Admin | SNMP
Sect. 6.3 SNMP Interface
The Administrator must use this page to manage the CDM-840 SNMP (Simple Network
Management Protocol) settings.

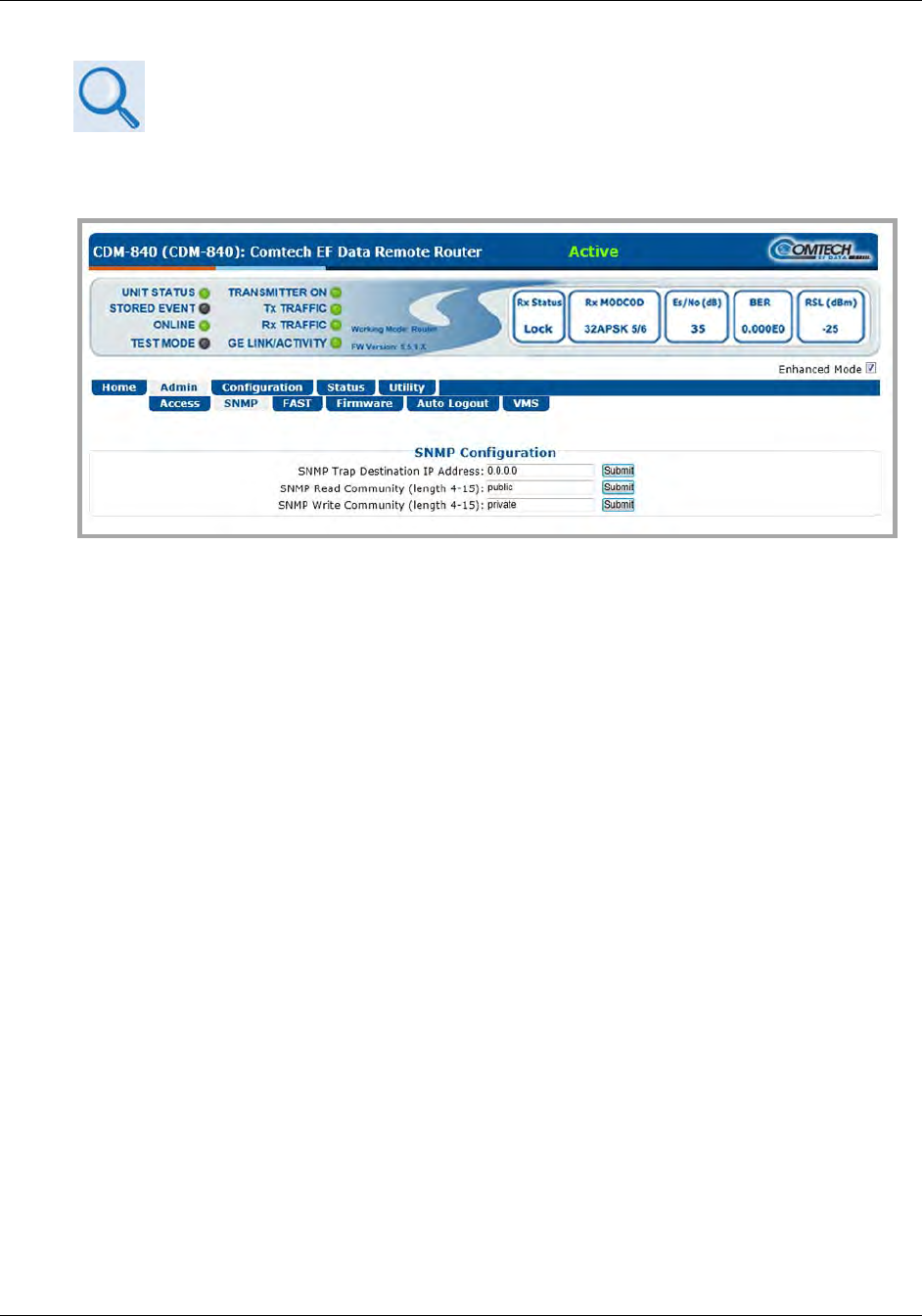

Figure 6-4. Admin | SNMP Page
SNMP Configuration
• Enter the SNMP Trap Destination IP Address, in the form XXX.XXX.XXX.XXX, of the computer
that is to receive the traps generated by the CDM-840.
Click [Submit] to save.
• Enter an SNMP Read Community string. The SNMP Read Community string can be any
combination of characters and a length from 4 to 15 characters. The factory default SNMP
Read Community string is public.
Click [Submit] to save.
• Enter an SNMP Write Community string. The SNMP Write Community string can be any
combination of characters and a length from 4 to 15 characters. The factory default SNMP
Write Community string is private.
Click [Submit] to save.
