1–1
Chapter 1. INTRODUCTION
1.1 Overview

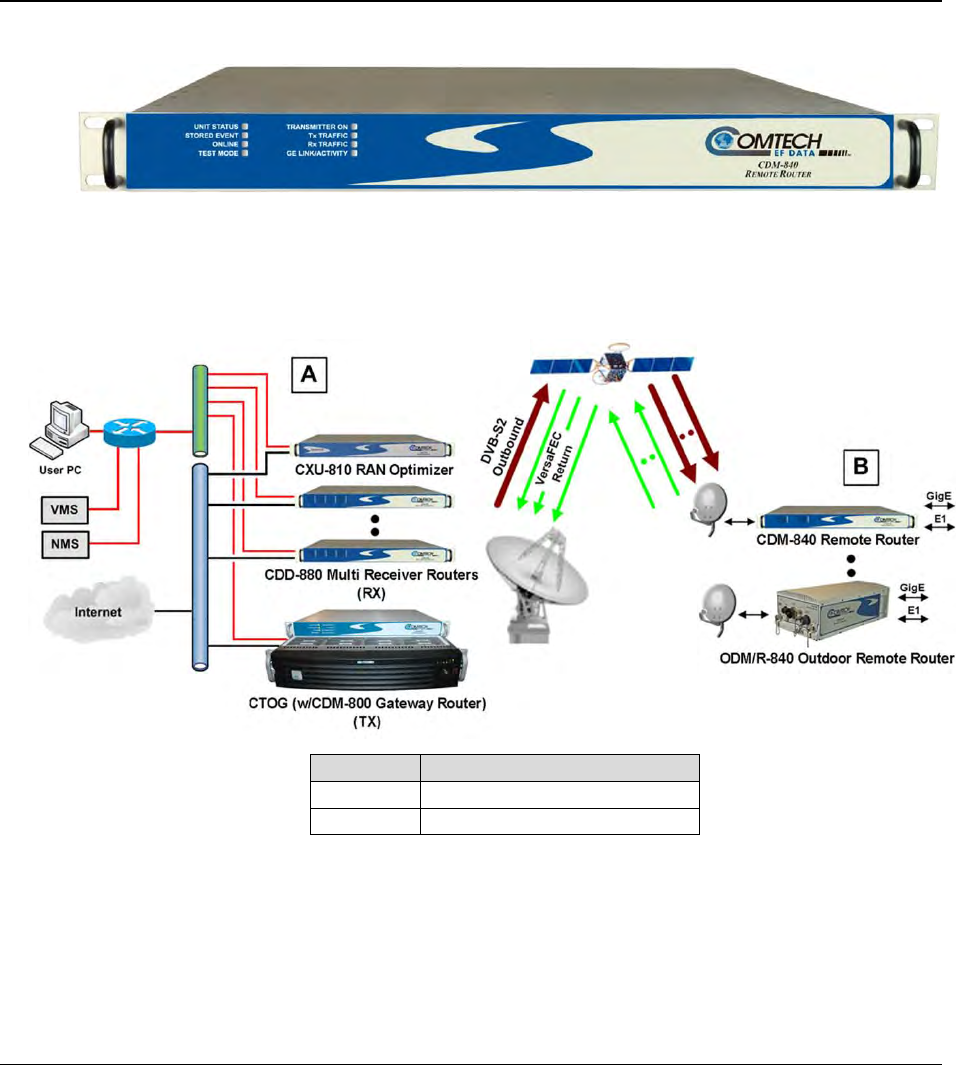

Figure 1-1. CDM-840 Remote Router
The CDM-840 Remote Router (Figure 1-1) is a point-to-multipoint router. It serves as the “spoke”
or remote site equipment component of Comtech EF Data’s Advanced VSAT Series group of
products.
Feature
Description
A
Hub Site
B
Typical Remote Site Cluster
Figure 1-2. Advanced VSAT Series Network Topology Example
Comtech’s Advanced VSAT Series group of products (Figure 1-2) are designed to support latency-
sensitive applications such as cellular backhaul over satellite, Universal Service Obligation (USO)
networks, corporate networks, Internet Service Providers, and other similar hub-and-spoke
- MN-CDM840 Revision 2 1
