CDM-840 Remote Router Revision 2
Ethernet-based Remote Product Management MN-CDM840
6–43
Column
Description
WRED
Use the drop-down list to Enable or Disable Weighted Random Early Detection. When
WRED is enabled, the QoS Queue will attempt to smoothly drop packets as the queue gets
congested. This is recommended for queues that will carry TCP packets.
Filter All
Use the dr op-down list to Disable or Enable the flow filter setting. If enabled, all packets
matching this QoS Rule will be dropped.

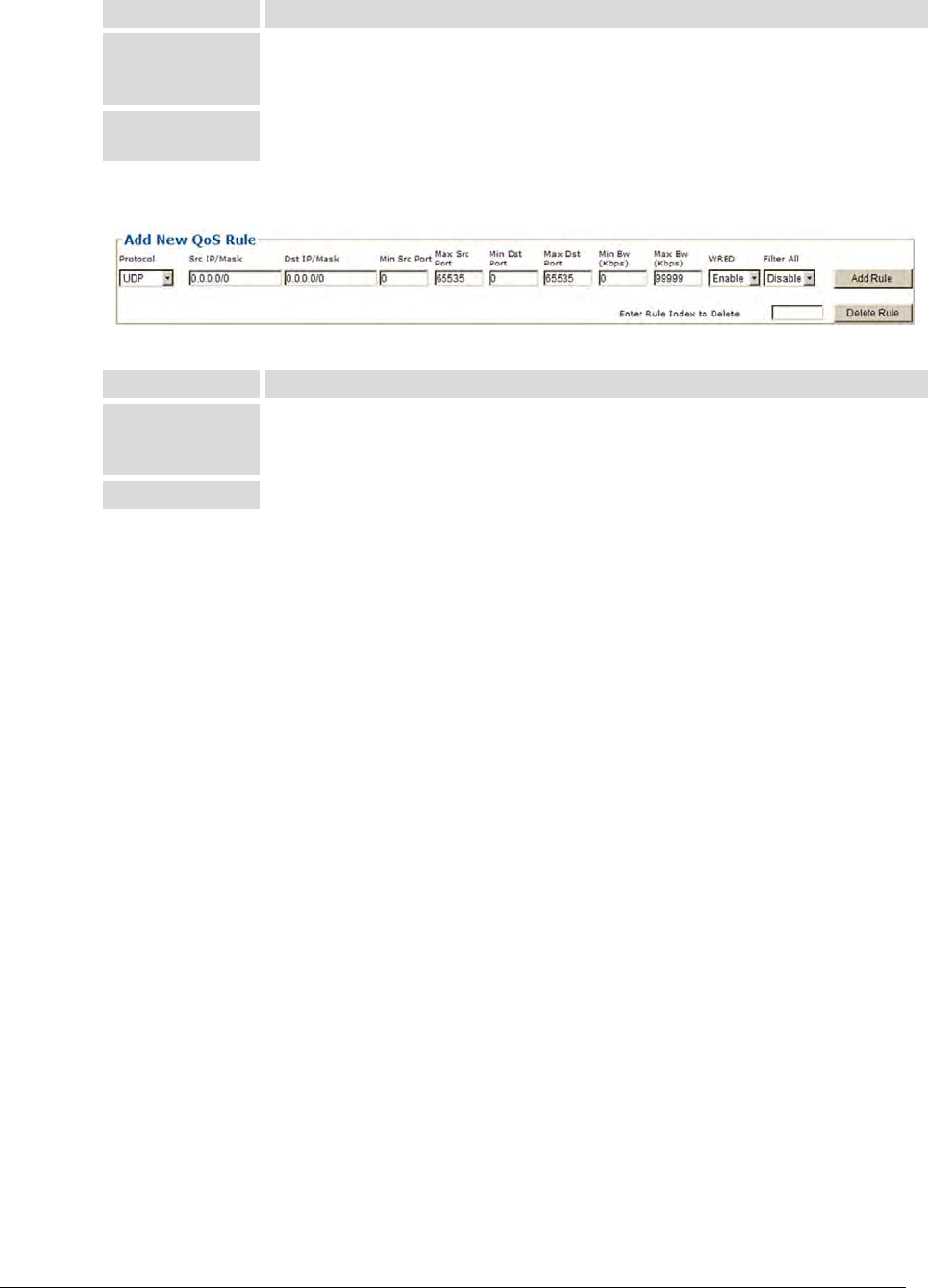

• When QoS Control is set to Min/Max mode:
From left to right:
Column
Description
WRED
Use the dr op-down list to Enable or Disable Weighted Random Early Detection. When
WRED is enabled, the QoS Queue will attempt to smoothly drop packets as the queue gets
congested. This is recommended for queues that will carry TCP packets.
Filter All
Use the drop-down list to Disable or Enable the flow filter setting.
