CDM-710G High-Speed Satellite Modem Revision 1
Rear Panel Connector Pinouts MN-CDM710G
4–3

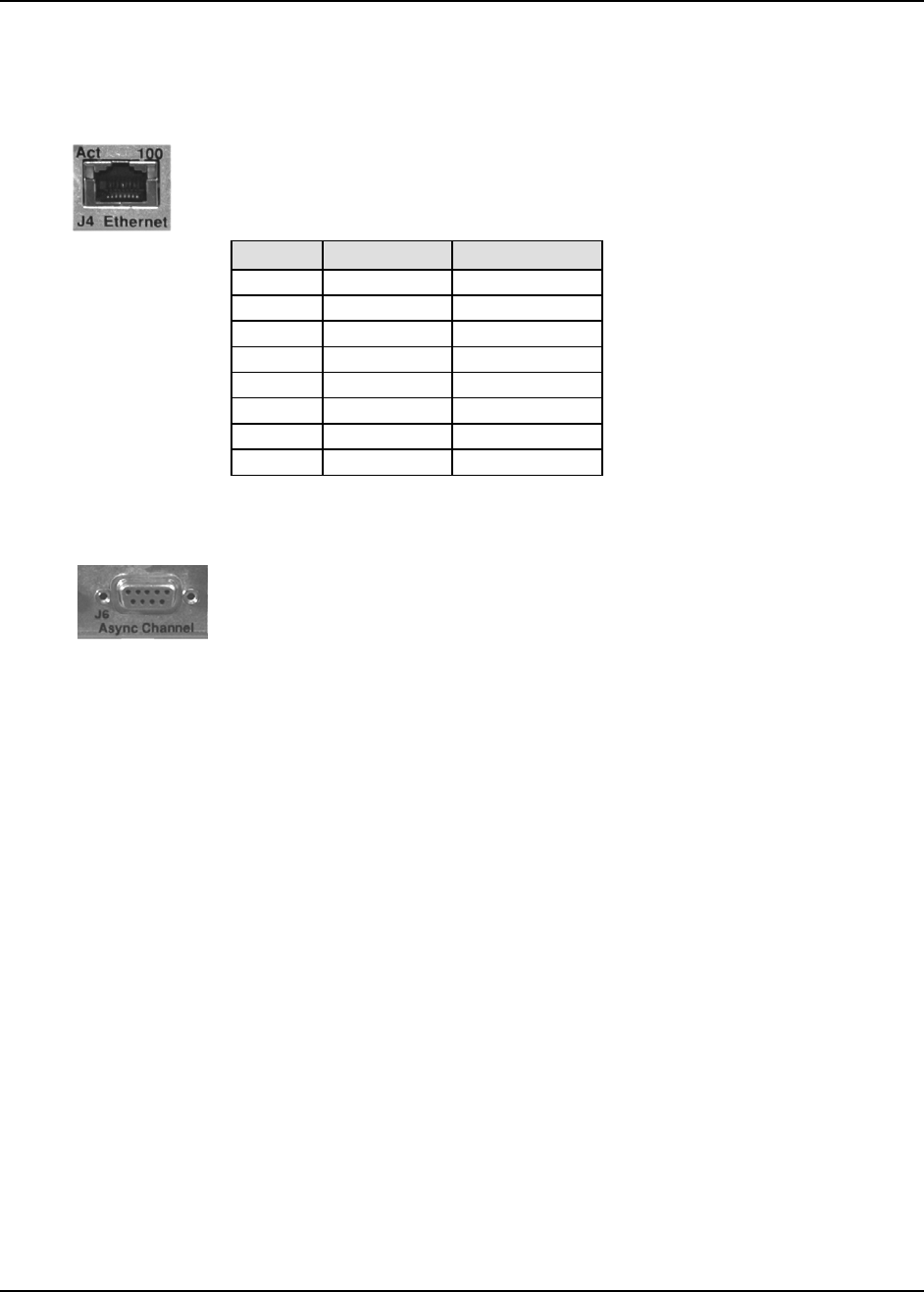

4.3 Terrestrial Data Connections
4.3.1 J4 10/100 Ethernet Remote Port Connector, RJ-45
The J4 Ethernet connector is a RJ-45 female interface. The J4 connector pinout is as
follows:
Pin # Description Direction
1 Tx+ Out
2 TX- Out
3 Rx+ In
4 N/A
5 N/A
6 Rx- In
7 N/A
8 N/A
4.3.2 J6 ASYNC Channel Port Connector, DB-9F (Non-operational)
At present, Asynchronous Engineering Channel operation is not implemented in the
CDM-710G; this connection is therefore non-operational.
