CDM-710G High-Speed Satellite Modem Revision 1
Web Server Interface MN-CDM710G
7–7
7.3.2 Admin Pages
The ‘Admin’ pages provide the means to set up the access parameters required to facilitate
communication with the CDM-710G Web Server.
IMPORTANT
The Admin pages are available only to users who have logged in using the
Administrator Name and Password.
7.3.2.1 Admin | Access

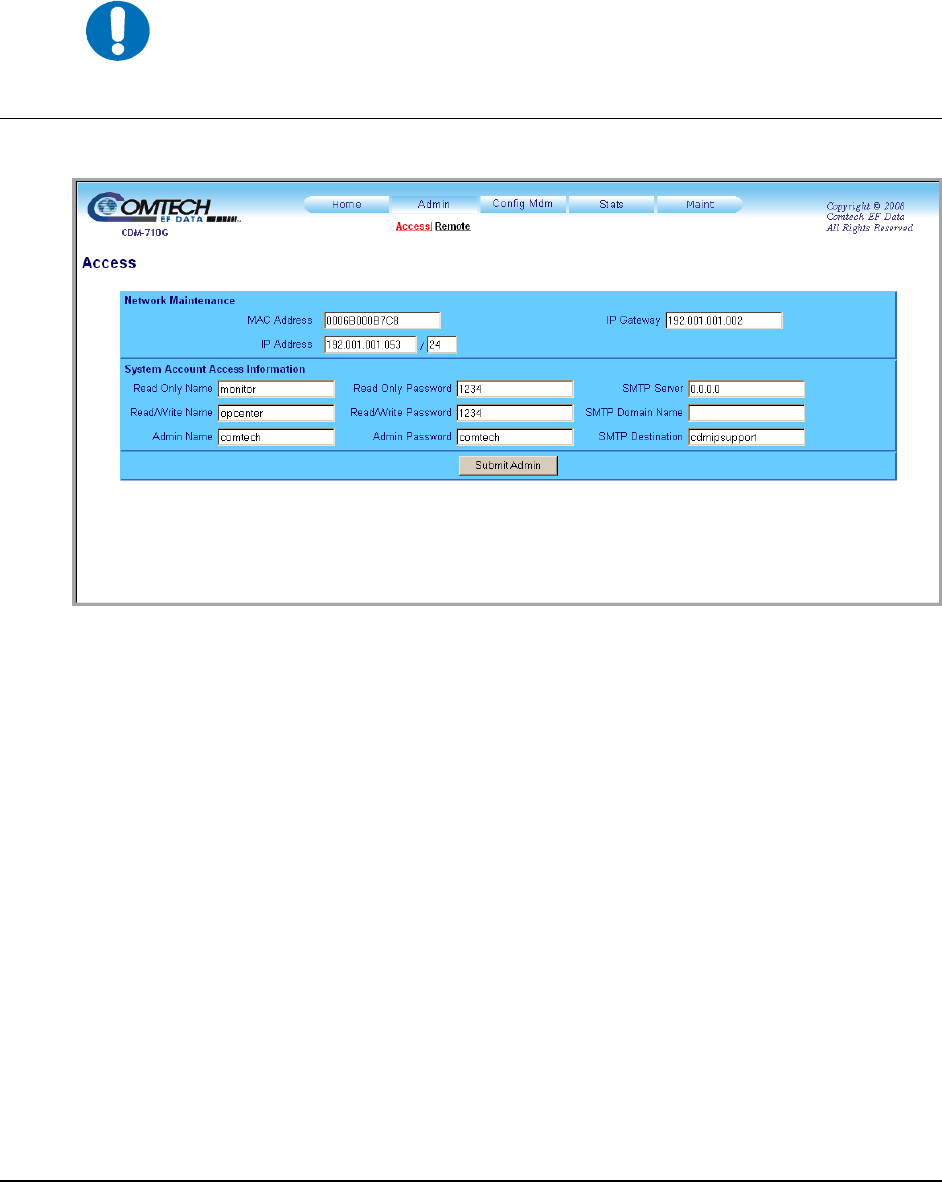

Figure 7-4. Admin | Access page
Use the ‘Admin | Access’ page (Figure 7-4) a
s the means to set up user names, passwords, the
E-mail server, and the host IP addresses as needed to facilitate communication with the
CDM-710G Web Server.
Network Maintenance
• MAC Address: This parameter is read-only and cannot be changed.
• IP Gateway: This entry allows a user to specify the IP Gateway Address for the Ethernet
M&C port for this unit.
• IP Address: This entry allows a user to specify an IP address and a subnet mask to define a
unique class of machines that are allowed access.
System Account Access Information
• Admin, Read/Write, Read Only Names and Passwords:
The factory defaults for these names/passwords are:
o Admin comtech/comtech
o Read/Write opcenter/1234
