CDM-710G High-Speed Satellite Modem Revision 1
Web Server Interface MN-CDM710G
7–12
7.3.3.2 Config Mdm | Modem

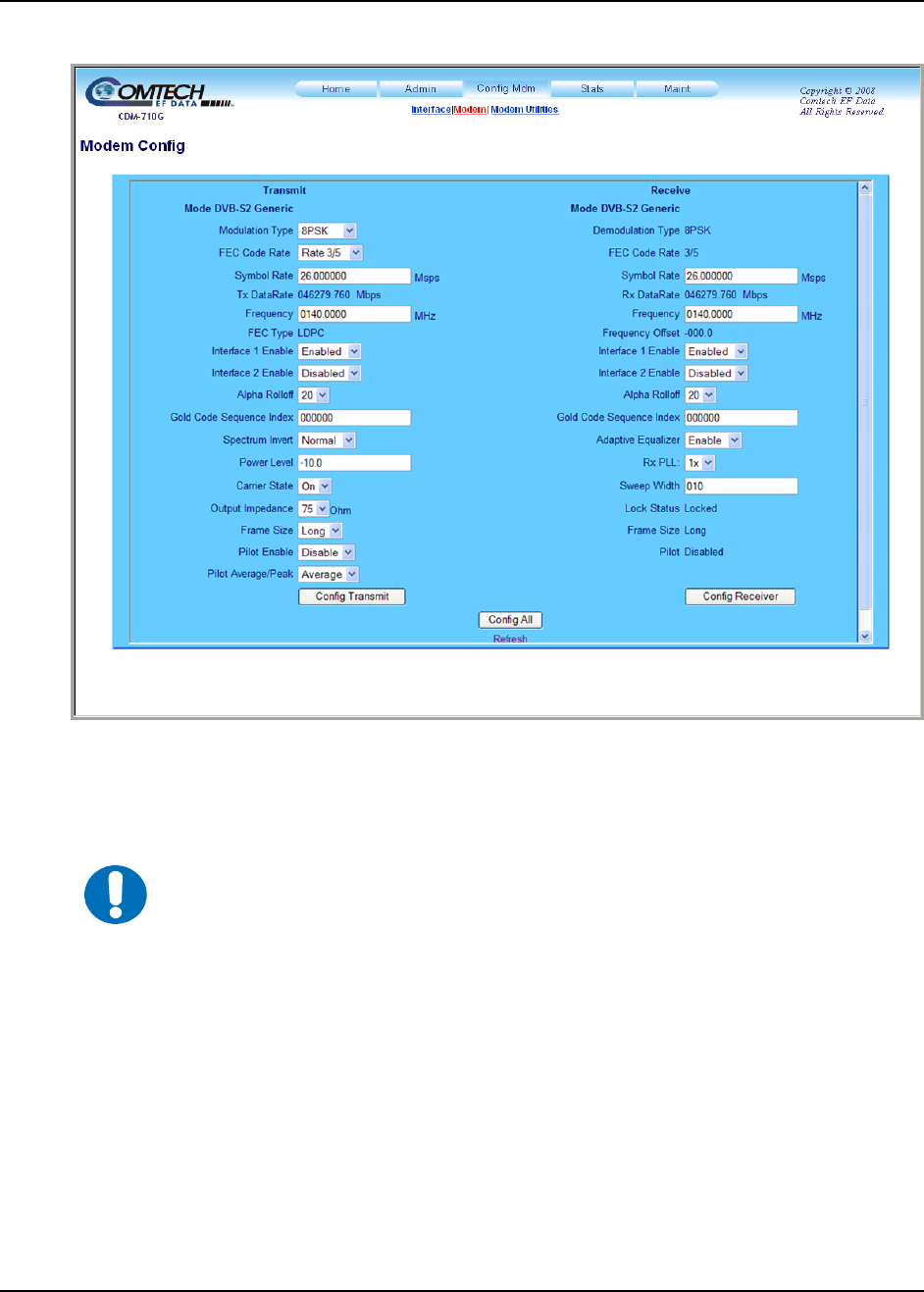

Figure 7-8. Config Mdm | Modem page
Use the ‘Config | Modem’ page (Figure 7-8) t
o configure modem DVB-S2 (Generic) operating
(Tx / Rx) parameters.
IMPORTANT
The Tx / Rx Interface Types and Framing Modes have higher priority than other
parameters, and should be configured before setting other parameters.
For details pertaining to the configuration parameters available on this page, refer to Chapter 6.
FRONT PANEL OPERATION.
Once the desired configuration settings have been made on this page, click [Config Transmit],
[Config Receiver], or [Config All] to save these changes.
