CDM-710G High-Speed Satellite Modem Revision 1

Telnet Interface MN-CDM710G

9–2

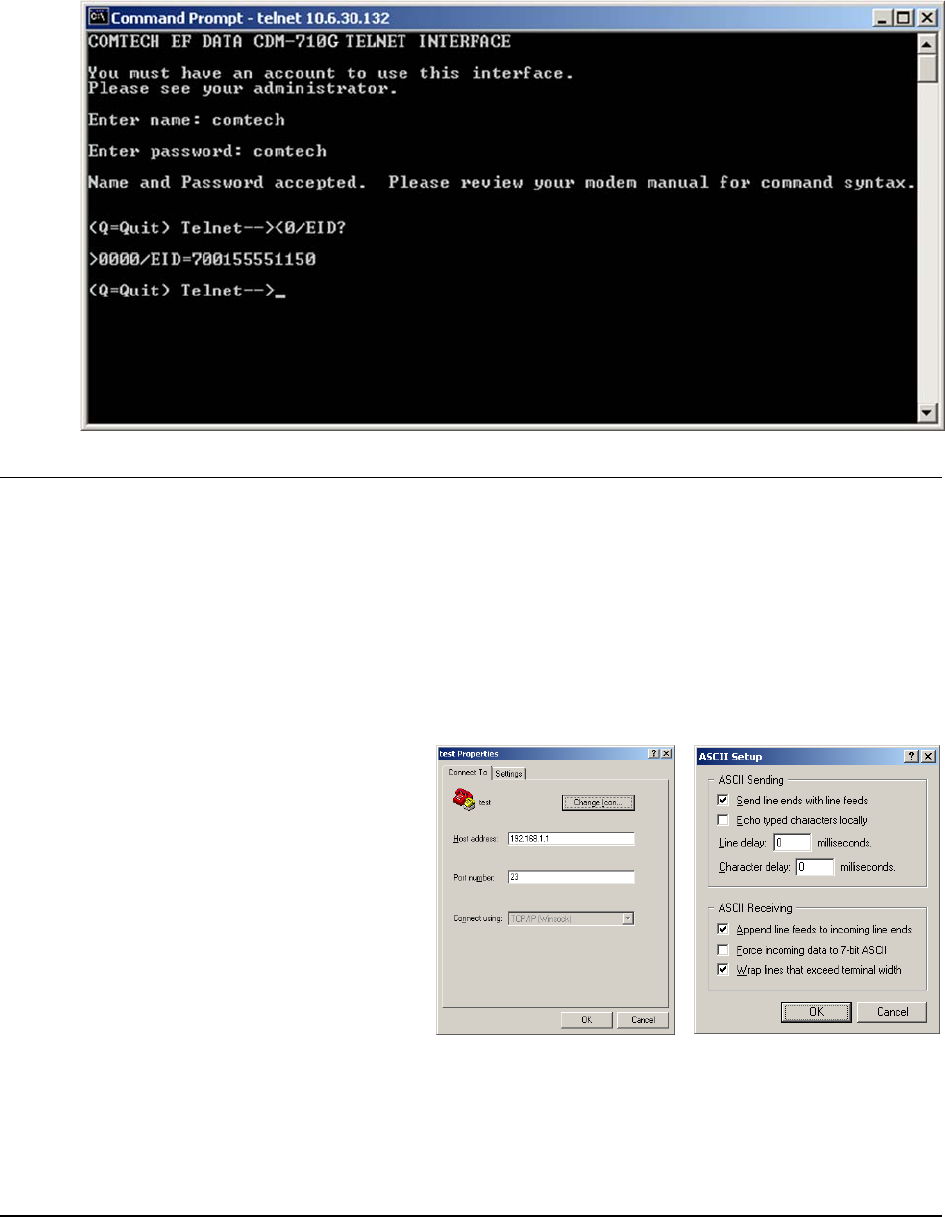

Once logged into the Telnet interface as the Administrator, the user can access the standard

remote control interface defined in Appendix A. REMOTE CONTROL, as shown in this

example:

9.2 Caution Using Windows Telnet Client

There is a disadvantage when using Windows DOS as Telnet Client. Since Windows DOS cannot

translate a ‘\r’ to a ‘\r\n’ for the messages coming from Telnet Server, the multi-line command

response (for example, FRW? response) will be displayed as one line, with the latter lines

overwriting the previous lines.

In order to view the full response messages, CEFD recommends using HyperTerminal configured

as Telnet Client. To do so, configure the HyperTerminal as following:

1. Connect using TCP/IP instead of

COM1 or COM2 (see example

shown at left).

2. ASCII setup: Check both the

"Send line ends with line feeds"

and "Append line feeds to

incoming line ends" options (see

example to right).
