9–1
Chapter 9. TELNET INTERFACE
9.1 Telnet Interface
The CDM-710G High-Speed Satellite Modem provides a Telnet interface for two primary
functions:
• Equipment M&C via the standard equipment Remote Control protocol.
• Equipment M&C via Comtech Monitor and Control System (CMCS) application.
The Telnet interface requires user login at the Administrator level and Read/Write level.

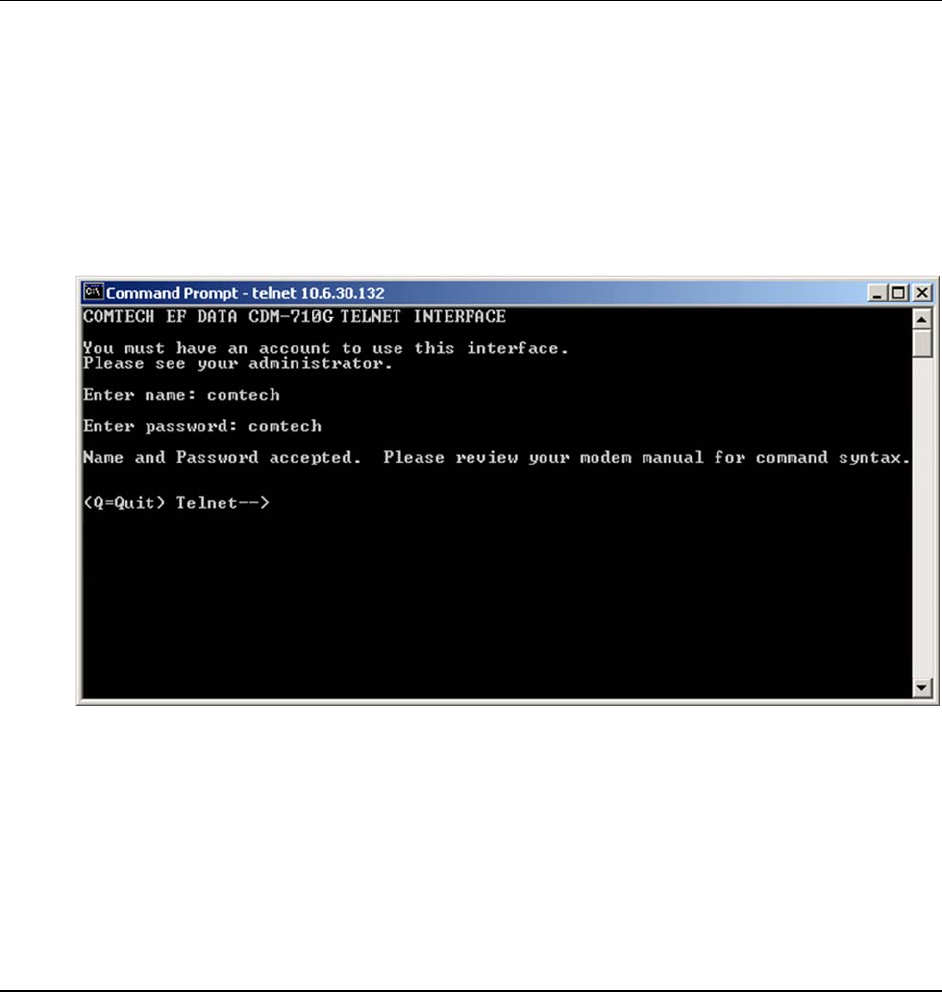

The login process is shown in the following example:
