UT-4500-A Series Upconverters Revision 1
Ethernet-based Remote Product Management MN-UT4500A
6–10
6.4.5.1.2 Home | Contact
Use this page to see the contact information (phone, fax, or Web/e-mail hyperlinks) for
Comtech EF Data Sales or Customer Support.

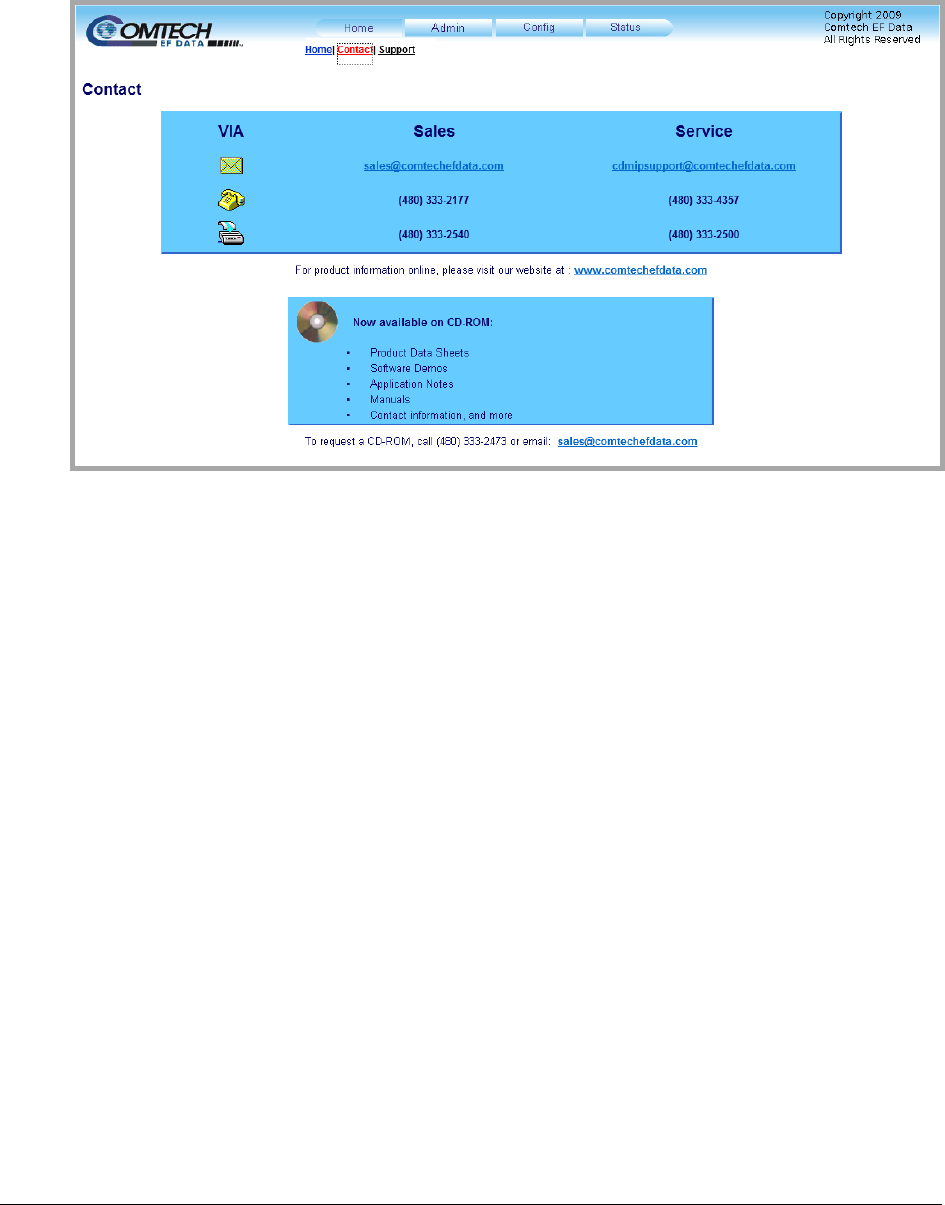

Figure 6-2. Home | Contact page
