UT-4500A Series Upconverters Revision 1
Introduction MN-UT4500A
1–6
1.3.2 Dimensional Envelope
Dimensions are shown in inches and [millimeters].

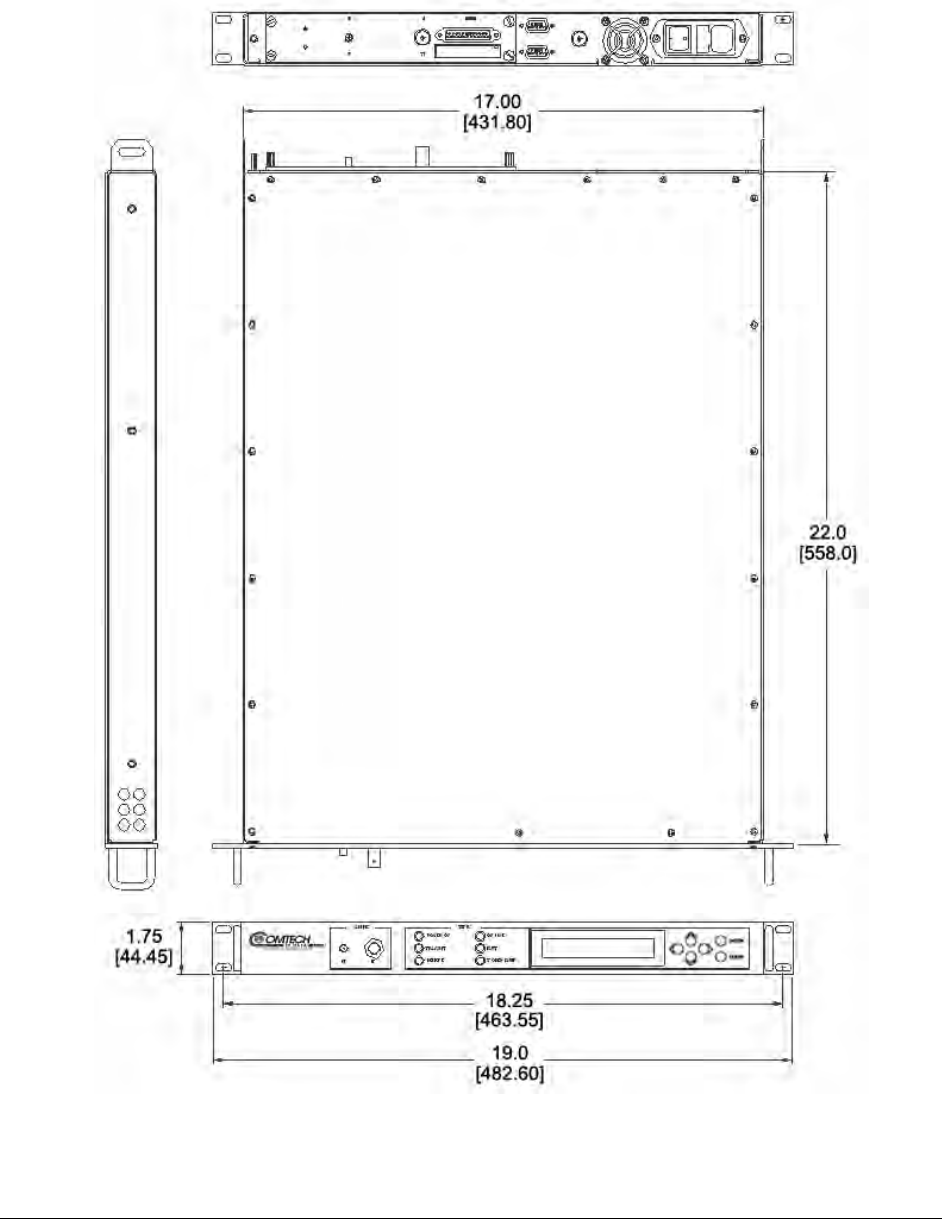

Figure 1-4. UT-4500-A Series Upconverter Dimensional Envelope
- UT-4500-A Series 1
