UT-4500-A Series Upconverters Revision 1

Ethernet-based Remote Product Management MN-UT4500A

6–9

6.4.5 45xxA Web Server Interface Page Descriptions

6.4.5.1 Home Pages

Click the Home tab, and then select the Home, Contact, or Support hyperlink to continue.

6.4.5.1.1 Home | Home

Use this page to identify the product and its current operating firmware version. Click the Home

tab and/or the nested Home hyperlink to return to this page from anywhere in the Web Server

Interface.

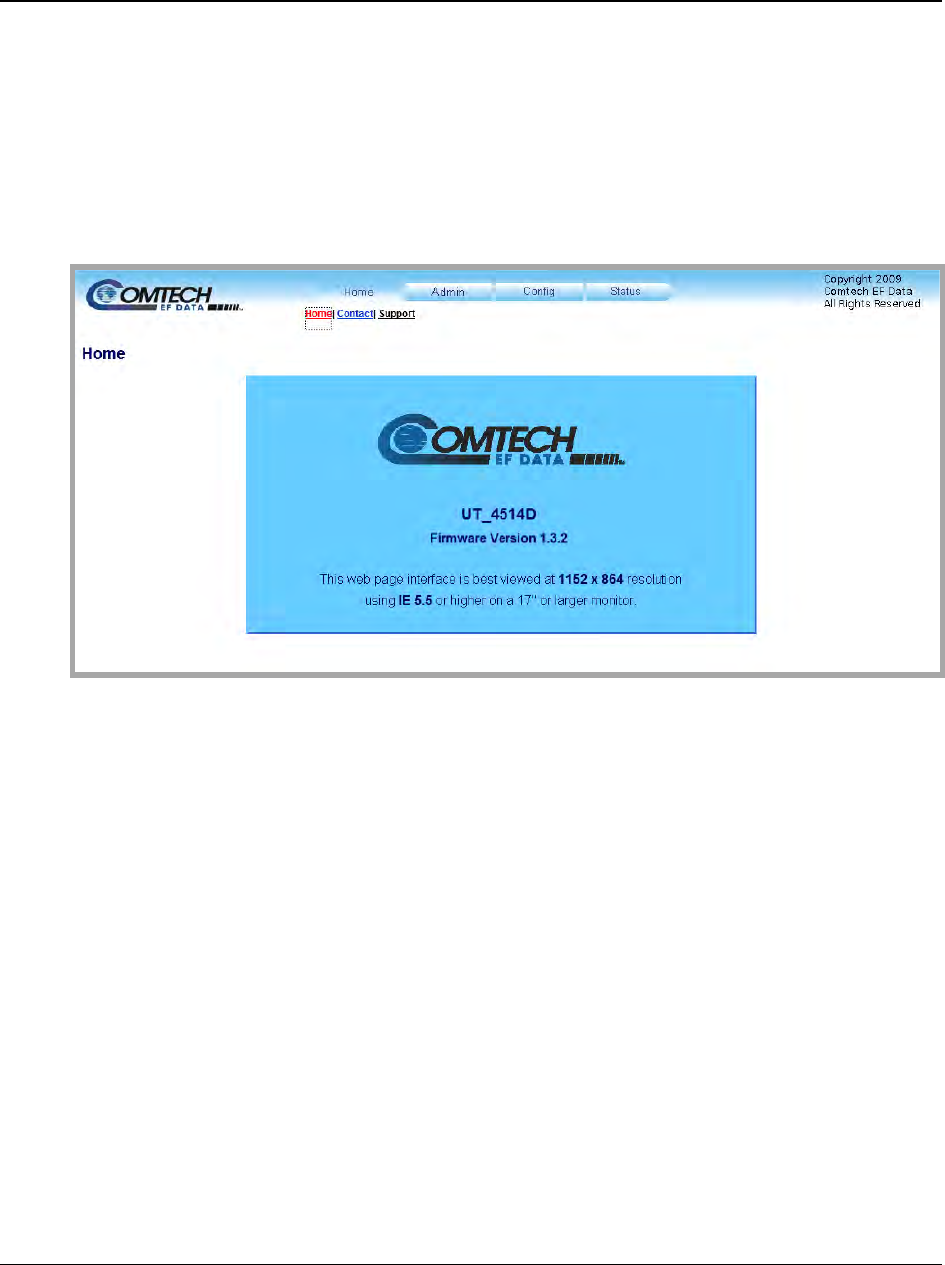

Figure 6-1. Home | Home page
