3–1

Chapter 3. REAR PANEL

CONNECTORS

3.1 Rear Panel Overview

Figure 3-1 shows the UT-4500-A Series Upconverter rear panel and its accessible connectors.

This example depicts a UT-4505-A Upconverter equipped with a Transmit Switch Module (TSM).

Table 3-1 summarizes these connectors, which provide all necessary external connections

between the upconverter and other equipment. Detailed information about each connector

follows.

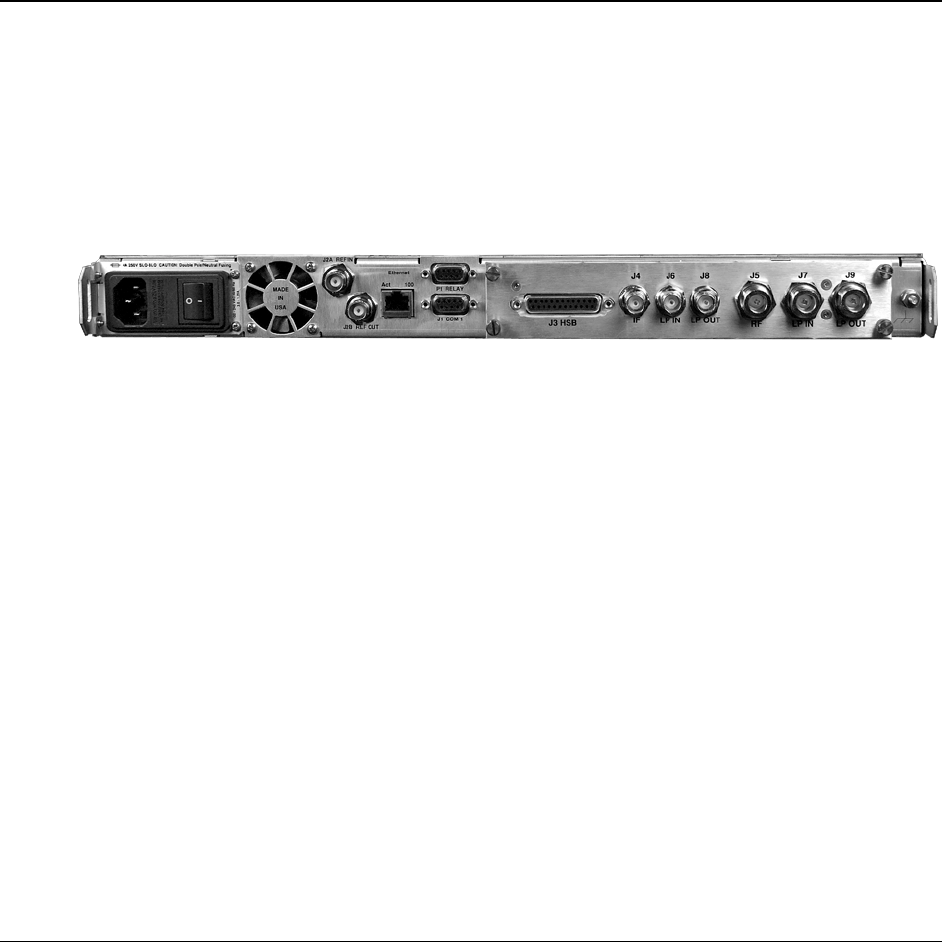

Figure 3-1. UT-4500-A Rear Panel (UT-4505-A with Receive Switch Module [RSM-XX]

Shown)
