CDM-710 Broadcast Satellite Modem Revision 11
Ethernet Management MN/CDM710.IOM
6–23
6.5.4.5 Maint | Unit Info Page

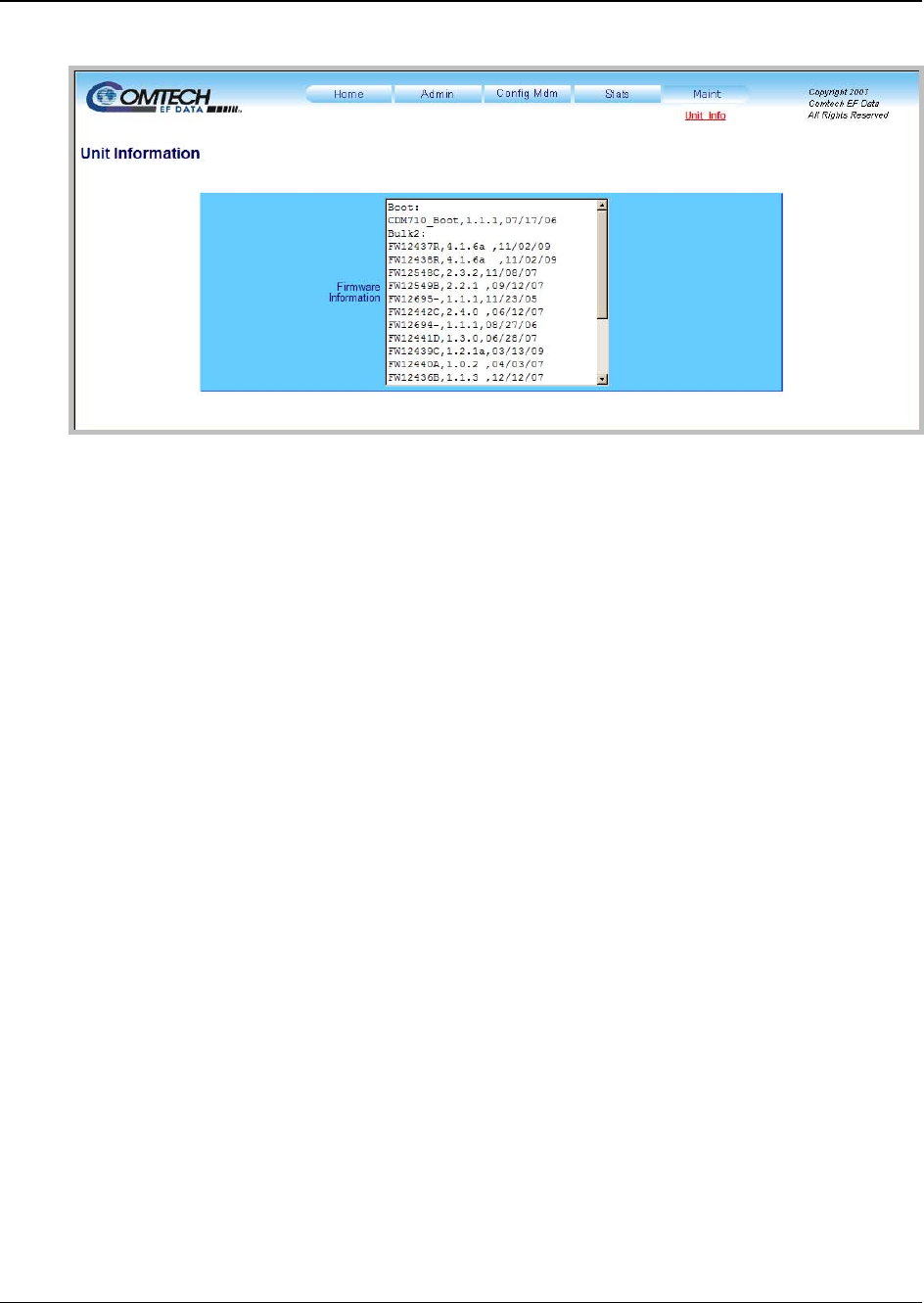

Figure 6-12. Maint | Unit Info page
Use the ‘Maint | Unit Info’ page (Figure 6-12) to
r
eview a read-only scrollable status window that
provides information about the currently loaded Bootrom; for Image 1 and Image 2, the user can
scroll through information of all the constituent firmware blocks that make up the bulk.
