CRS-170A L-Band 1:1 Redundancy Switch Revision 3

Modem and Switch Configuration MN/CRS170A.IOM

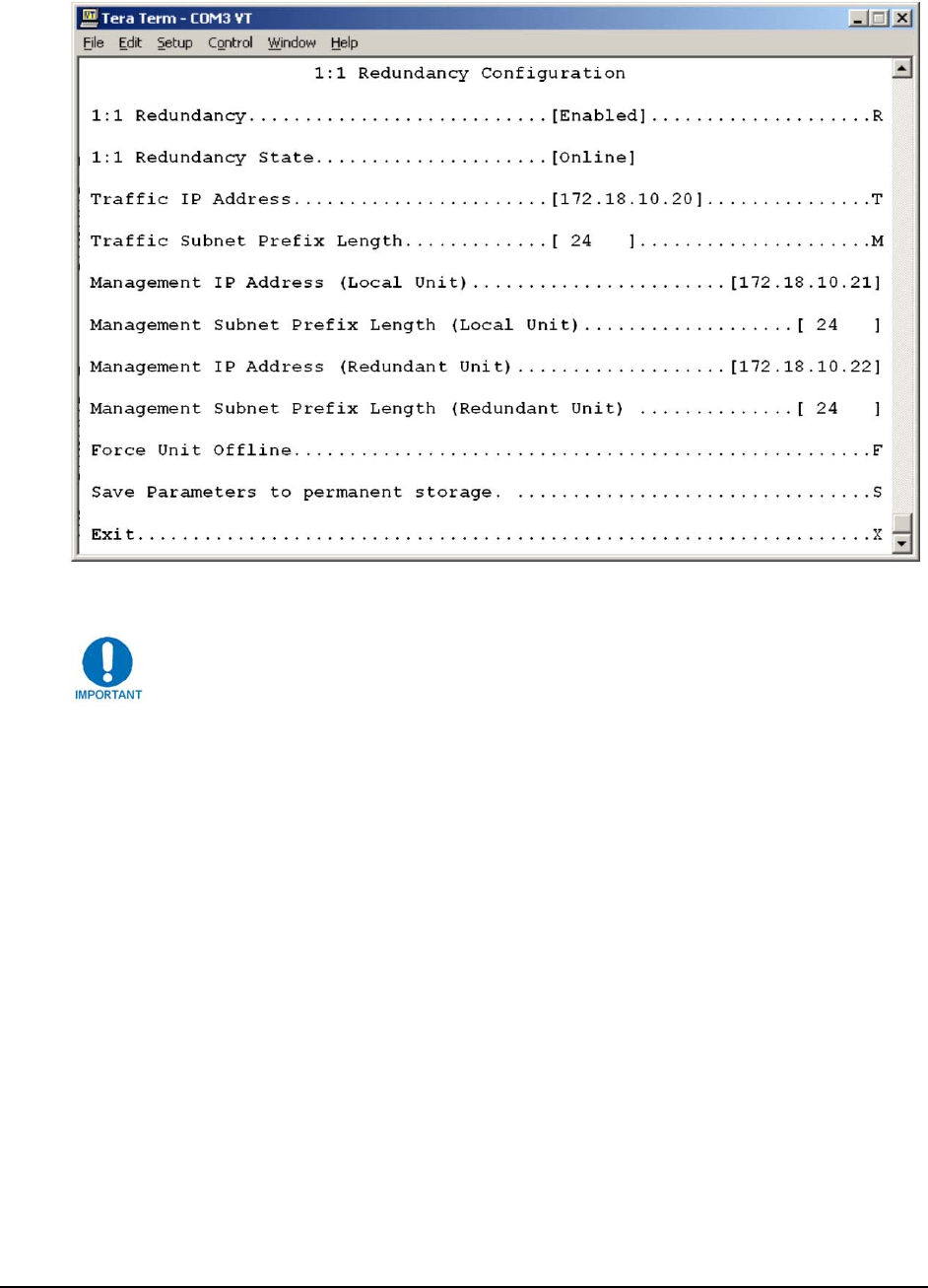

Figure 3-2. CLI 1:1 Redundancy Configuration screen

All configuration changes can only be made to the Online CDM-570L and will

require the user to “

Save Parameters to permanent storage” to

ensure the configuration change is also applied to the Backup CDM-570L.

3.3.2 Non-IP Redundancy Configuration

If the terrestrial data type non Ethernet, (i.e. RS422, G.703) the modem configuration procedure

for non-IP redundancy is as follows:

1. On both modems, Enable 1:1 Redundancy:

Redundancy Configuration Æ 1:1 Redundancy set to ENABLE.

2. Connect all cables – including the control cable, IF cable and data ‘Y’cables – to the modems

and the CRS-170A as directed in Chapter 4. CABLES AND CONNECTIONS.

3–5
