CDD-880 Multi Receiver Router Revision 0

Ethernet Management MN-CDD880

5–8

5.4.4.3.2 Admin | SNMP

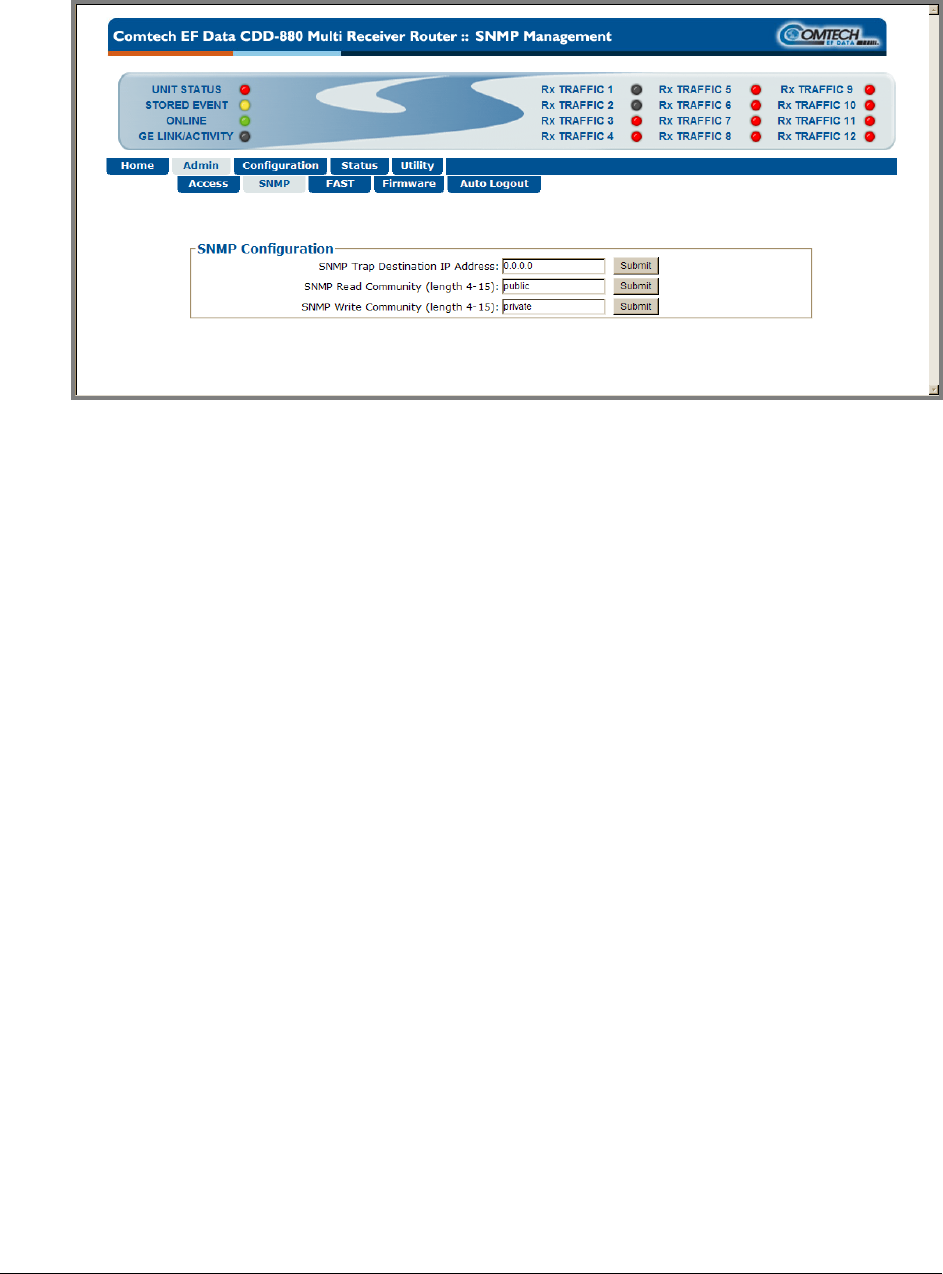

Figure 5-4. Admin | SNMP page

The ‘Admin | SNMP’ page (Figure 5-4) sets and returns administration information for the

CDD-880 Sim

ple Network Management Protocol (SNMP) feature. For further information about

SNMP, see Section 5.3 SNMP INTERFACE.

SNMP Configuration

Use the provided text boxes to assign the desired SNMP configuration string. For each string

created, click [Submit] as needed to save the change(s). Note the following:

• (FUTURE) A single SNMP Trap Destination IP Address can be assigned.

• An SNMP Read Community String can be assigned. This string can be any combination of

characters and a length of 4 - 15 characters. The factory default for this parameter is public.

• An SNMP Write Community String. This string can be any combination of characters and

a length of 4 - 15 characters. The factory default for this parameter is private.
