CDD-880 Multi Receiver Router Revision 0

Ethernet Management MN-CDD880

5–23

5.4.4.5.1.3 Status | Statistics | Router

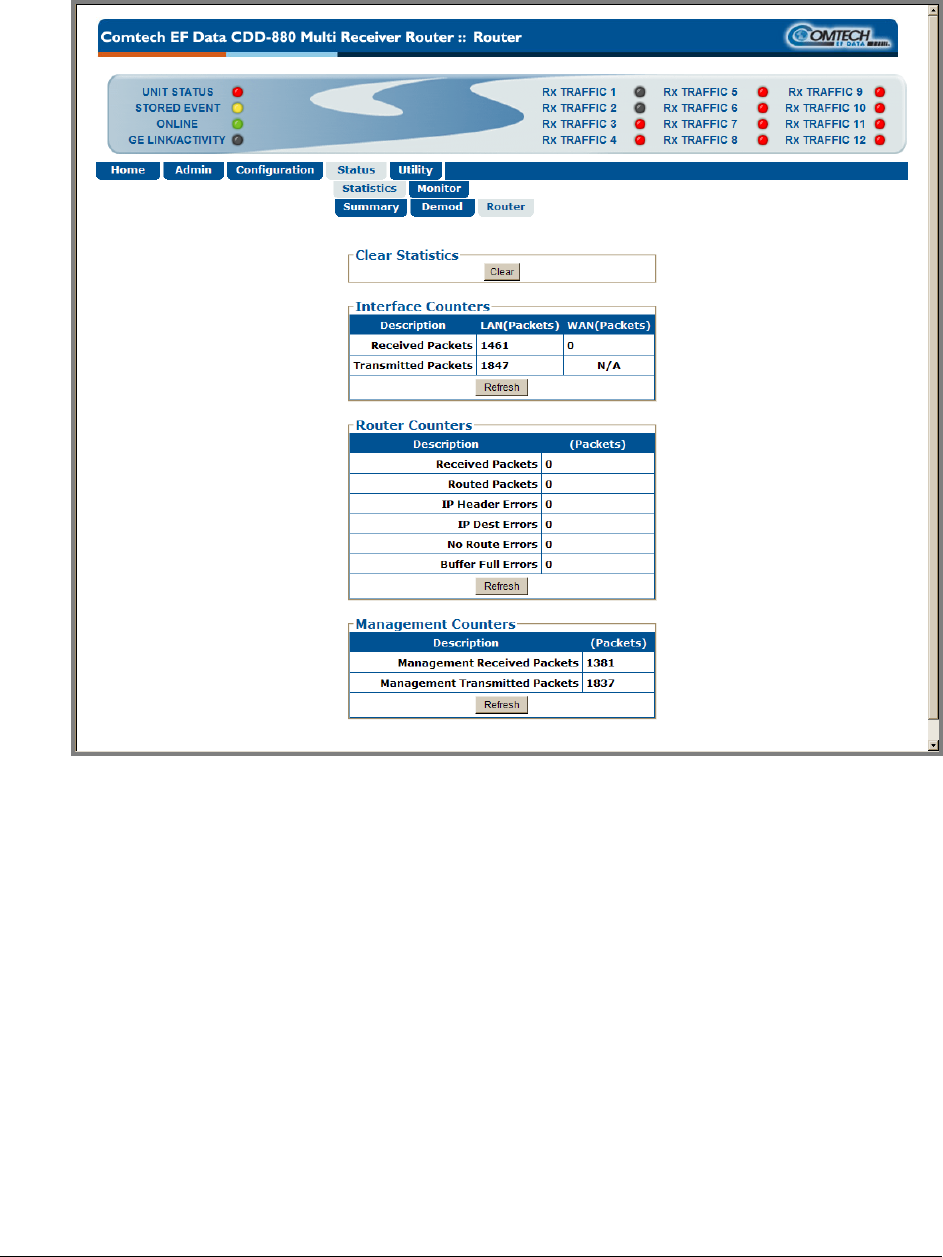

Figure 5-15. Status | Statistics | Router page

The ‘Status | Statistics | Router’ page (Figure 5-16) is used to view cu

mulative router traffic

information.

Clear Statistics

Click [Clear] to clear all router statistics from the buffer.

Interface Counters / Router Counters / Management Counters

For each section, click [Refresh] to update the section with its latest available statistics.
