MCED-100 MetaCarrier Embedding Device Revision 1

Ethernet-based Remote Product Management MN-MCED100

6–11

6.4.4.2.3 Admin | Firmware



Chapter4.UPDATINGFIRMWARE

Use this page to select which image (boot Slot #) is to be designated as the active running

firmwareimage–i.e.,theversionloadedforoperationuponpower‐uporsoftreboot.



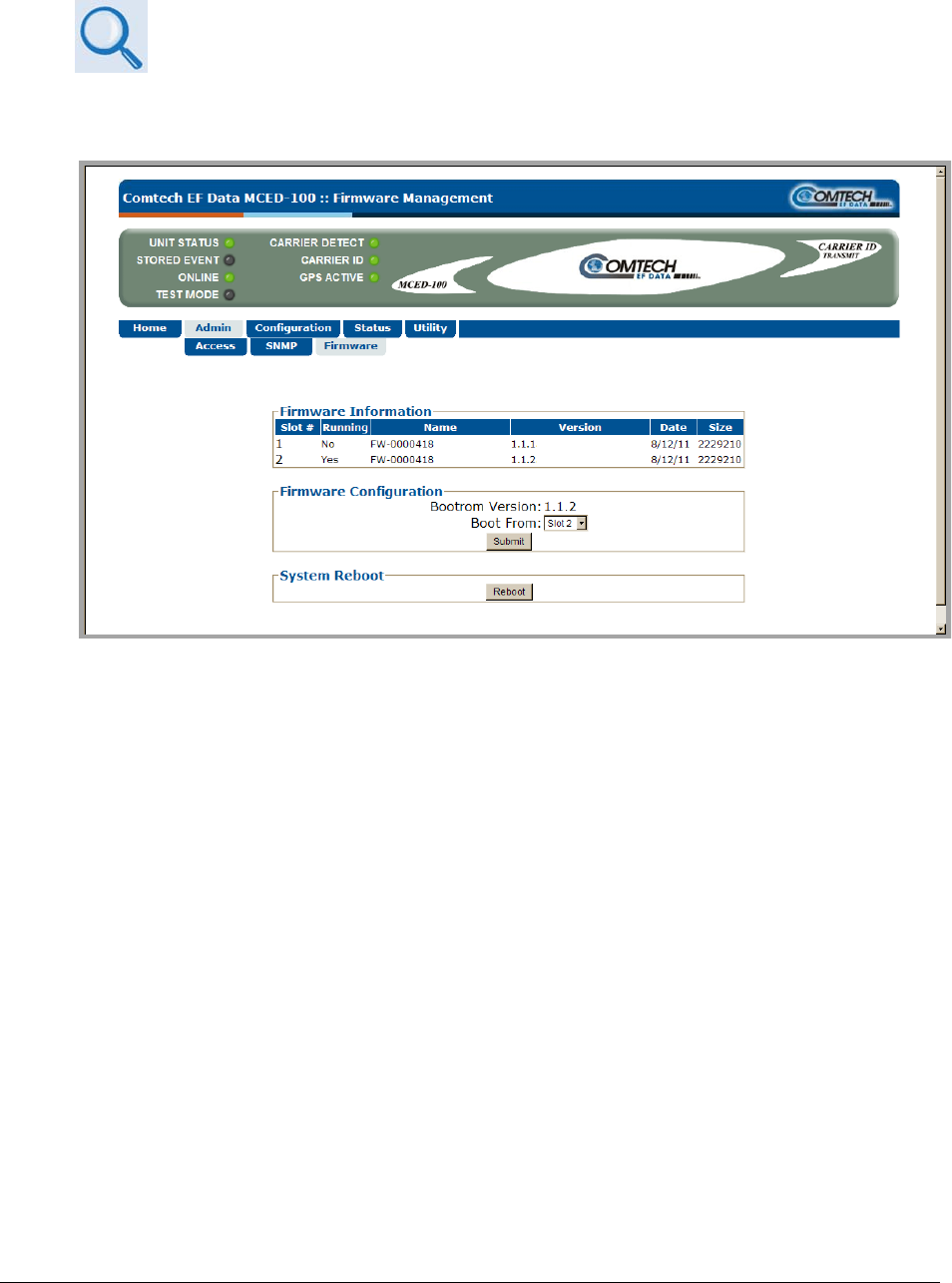

Figure 6-5. Admin | Firmware page

Firmware Information

Thisread‐onlystatussectiondisplaysoperating statusforthefirmwareversionsloaded intoSlot

#1andSlot#2.

Firmware Configuration

UsetheBootFrom:drop‐downmenutoselectLatest,Slot1,orSlot2.Thedefaultselectionis

Latest, in which the unit will automatically select the image that contains the most current

firmware.



Click[Submit]toexecutethedesiredfirmwarebootpreference.



(Note that the Slot Information section, which in the above example displ

ays Slot #2 as the

designatedactiverunningfirmwareimage,willnotupdateuntilaftertheunitisrebooted.)

System Reboot

Click[Reboot]to reboot theMCED‐100. It isnecessary toreboot for thenew selection to take

effect.
