CRS-100 1:1 Redundancy Switch

3–2 MN/CRS100.IOM

3.3 Side Panel - Right Side

On the side panel (Figure 3-1) to the right are the two Tx IF ports, ‘A’ and ‘B’, which are

BNC female. Connection is made to the pair of Modems using Comtech EF Data P/N

CA/BNC 75 OHM ( 75Ω applications) or Comtech EF Data P/N CA/BNC 50 OHM

( 50Ω applications).

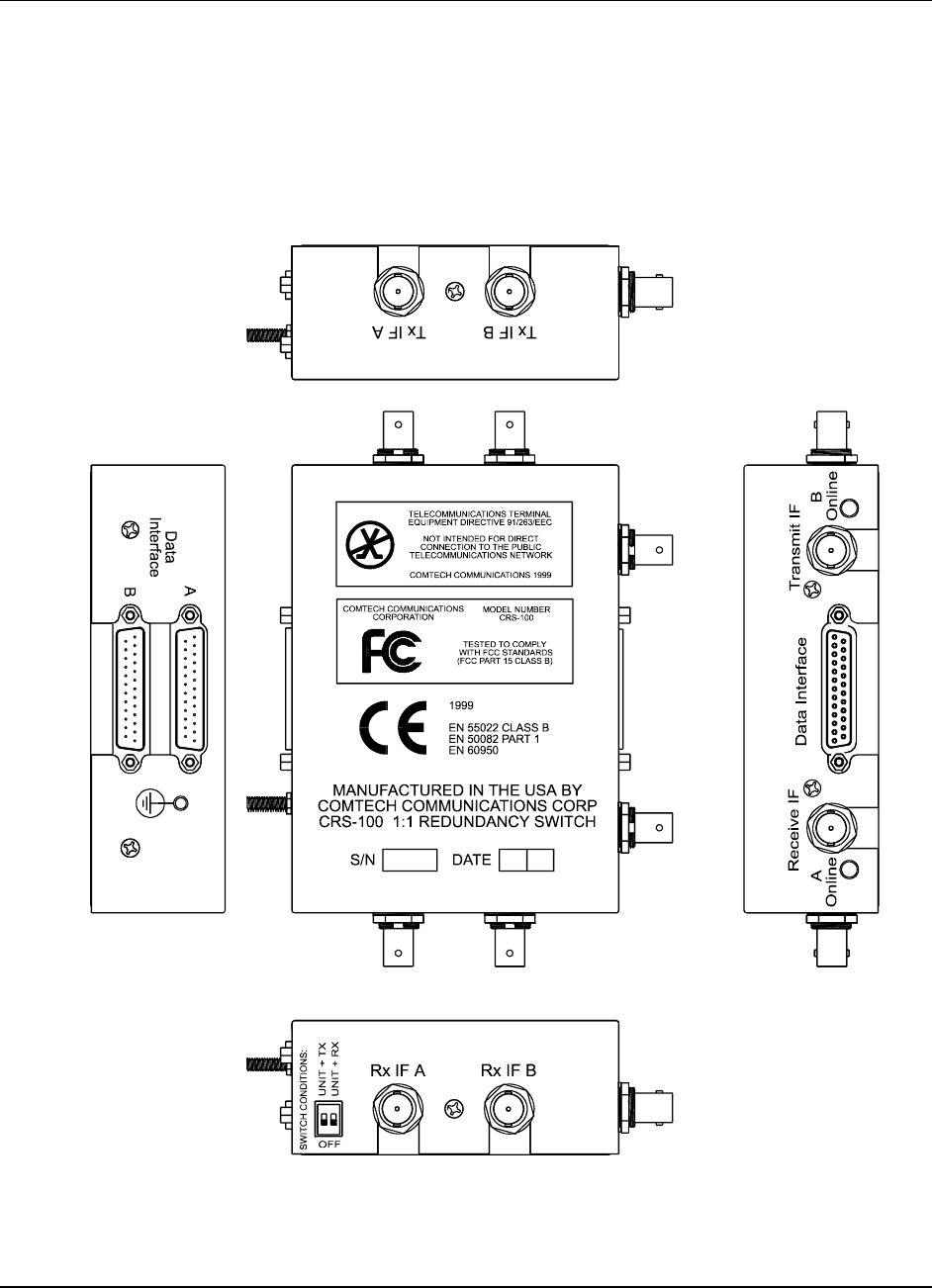

Figure 3-1. CRS-100 – Side Panels
