6.5.4.3.1.1 Config Mdm | Quick View | Config Pages
Depending on the configuration icon selected, the nested Config page provides the user with
access to an assortment of base unit, modulator, and demodulator configuration parameters. For
detailed information on these features, refer to the pertinent subsections of Sect. 5.2 (MAIN
MENU:) CONFIG in Chapter 5. FRONT PANEL OPERATION.
Config Page – ‘Base’ Selected
Config Page – ‘Tx’ Selected

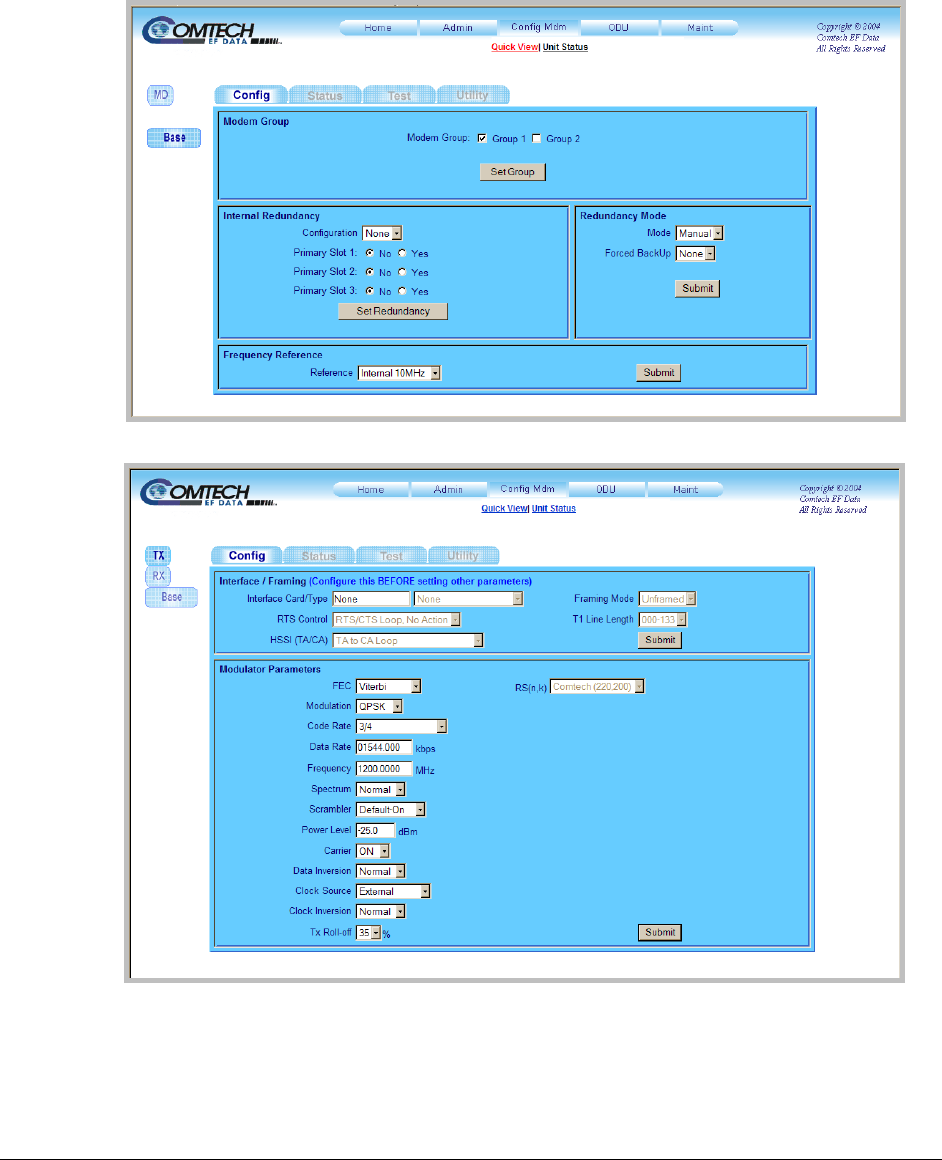

Figure 6-8. ‘Config Mdm | Quick View | Config’ Nested Pages – Base, Tx
