CDM-Qx/QxL Multi-Channel Satellite Modem with DoubleTalk™ Carrier-in-Carrier® Revision 7
Ethernet Management MN/CDMQX.IOM
6–4
6.4 Telnet Interface
The modem provides a Telnet interface for the purpose of Equipment M&C via the standard
equipment Remote Control protocol.
The Telnet interface Requires user login at the Administrator level and Read/Write level.

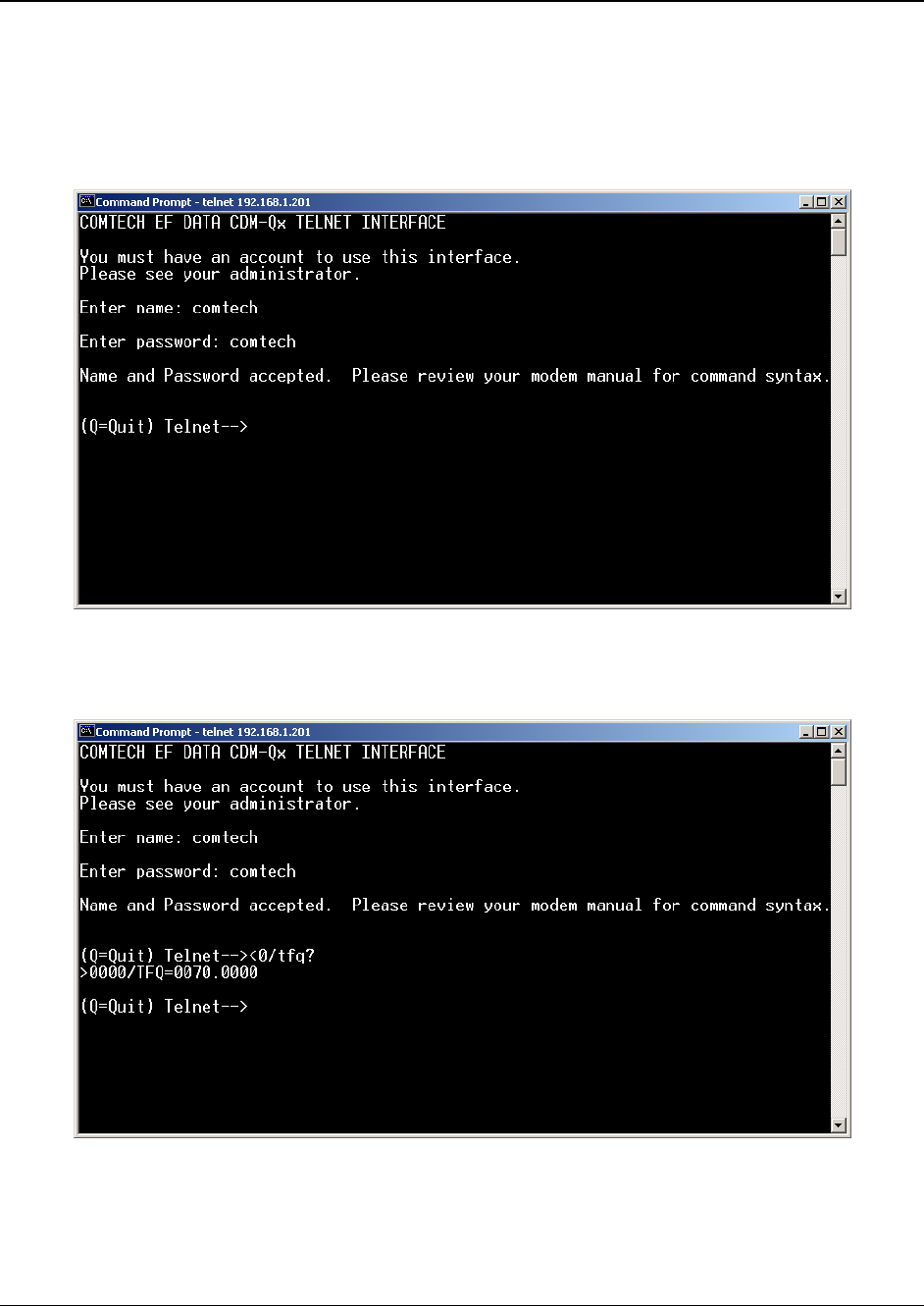

This screen capture shows the login process:
Once logged into the Telnet interface as the Administrator, the user can access the standard remote
control interface defined in Appendix B. REMOTE CONTROL, as shown in the following
example:
There is a disadvantage when using Windows DOS as Telnet Client. Since Windows DOS cannot
translate a ‘\r’ to a ‘\r\n’ for the messages coming from Telnet Server, the multi-line command
