DMD2050E Universal Satellite Modem Technical Specifications
MN-DMD2050E Revision 2 7–26
7.12.18 BER Performance 8-PSK (MILSTD 188-165B or STANAG) Turbo

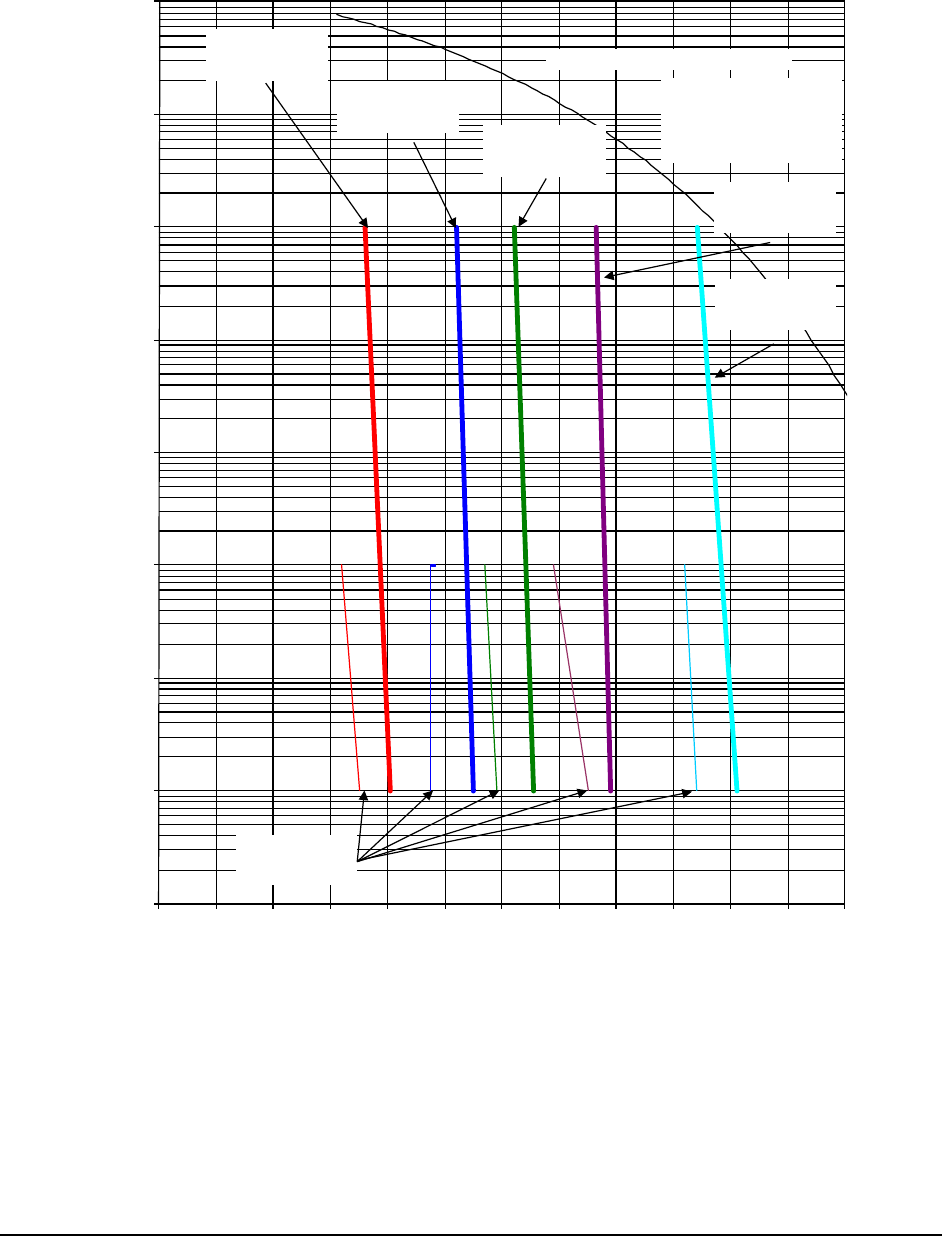

Figure 7-18. DMD2050E BER Performance 8-PSK (MILSTD 188-165B or STANAG) Turbo
Note: Eb/No to Bit-Error-Ratio 77values based on 16k block size
1E-9
1E-8
1E-7
1E-6
1E-5
1E-
4
1E-3
1E-2
1E-1
0 1 2 3 4 5 6 7 8 9 10 11 12
BER
Eb/No in dB
MILSTD 188-165B
or ST ANAG
Decoder
Typical
Performance
8PSK Uncoded Theory
Specification
2/3 Rate
Specification
3/4 Rate
Specification
1/2 Rate
Specification
7/8 Rate
Specification
19/20 Rate
