KP-10 External Keypad Revision 1

Operation MN/KP10.IOM

1.1.2 DESCRIPTION

The KP-10 includes the following features:

! Communications are block mode (quasi half-duplex).

! Remote controls and status information are transferred via an RS-232C or an RS-485

serial communications link .

! Commands and data are transferred on the remote control communications link as

US ASCII -encoded character strings .

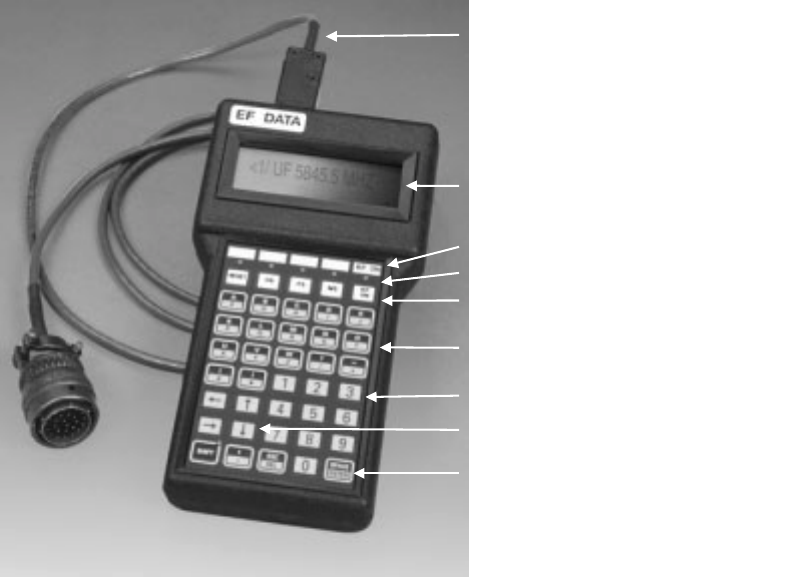

Figure 1 shows the elements of the KP-10:

Figure 1. KP-10 Elements

SERIAL CABLE

KEY LABELS

FUNCTION KEYS

NUMERIC KEYS

DISPLAY

INDICATOR LEDS

CHARACTER KEYS

CURSOR MOVEMENT KEYS

ADDITIONAL FUNCTION KEYS
