MBT-4000 Multi-Band Transceiver System Revision 1

Introduction MN/MBT4000B.IOM

1–2

• Easy expansion for providing a redundant system or other frequency bands

• System status verification via LEDs located behind a removable cover

1.3 System Overview

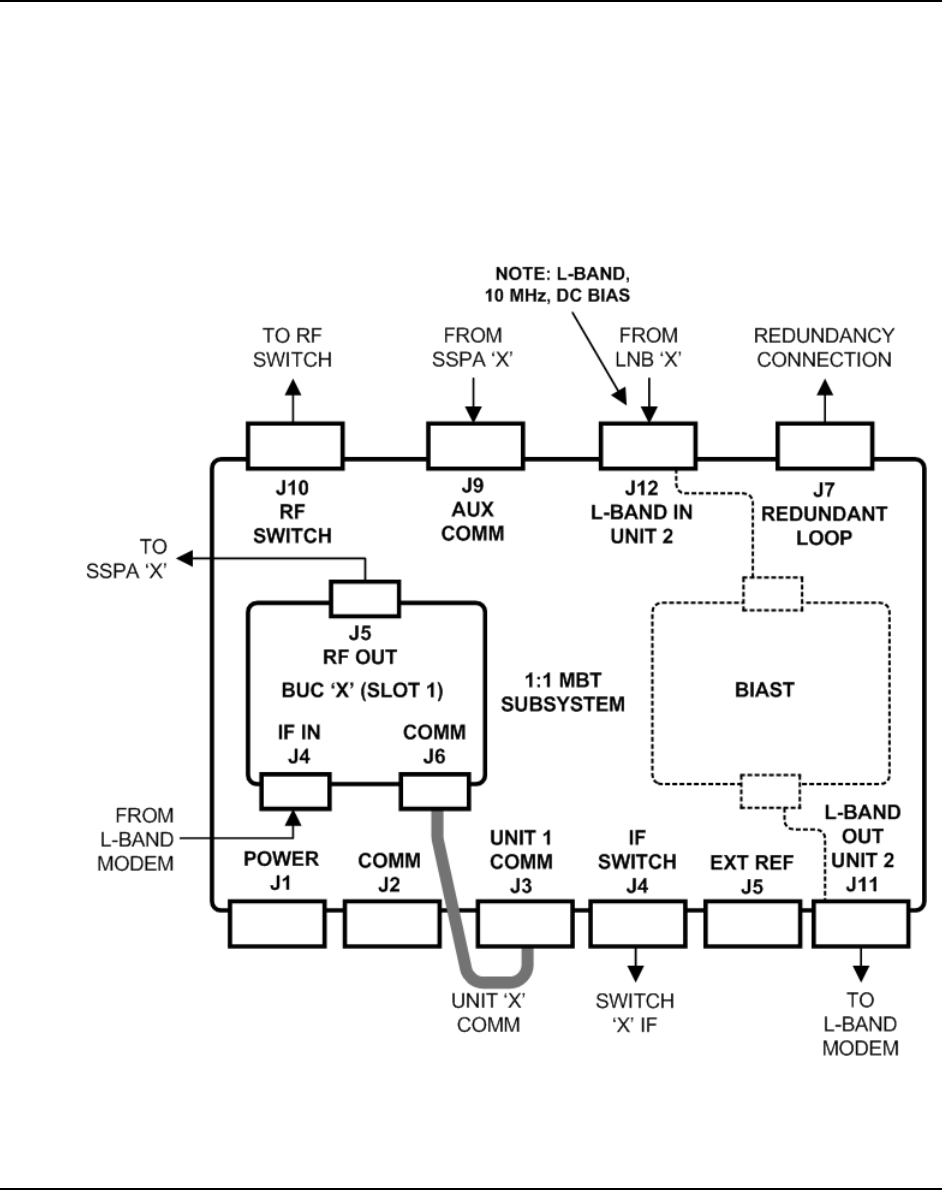

Figure 1-2 depicts the operation schematic for a typical MBT-4000B application. The MBT-4000B

Multi-Band Tranceiver System is constructed in a modular configuration. Figure 1-2 illustrates

the key components of this configuration. The transceiver is constructed in a modular

configuration. Common to the configuration for any frequency band of operation is a base

module, which provides the M&C, Power Supply, and Reference function. A band-specific BUC

module is mounted to the base module with clip-type fasteners. An internal bias tee provides a

10 MHz reference and bias voltage for an external LNB.

Figure 1-2. MBT-4000B Typical Application Schematic
