MBT-4000 Multi-Band Transceiver System Revision 4

External Connectors MN/MBT4000.IOM

3–10

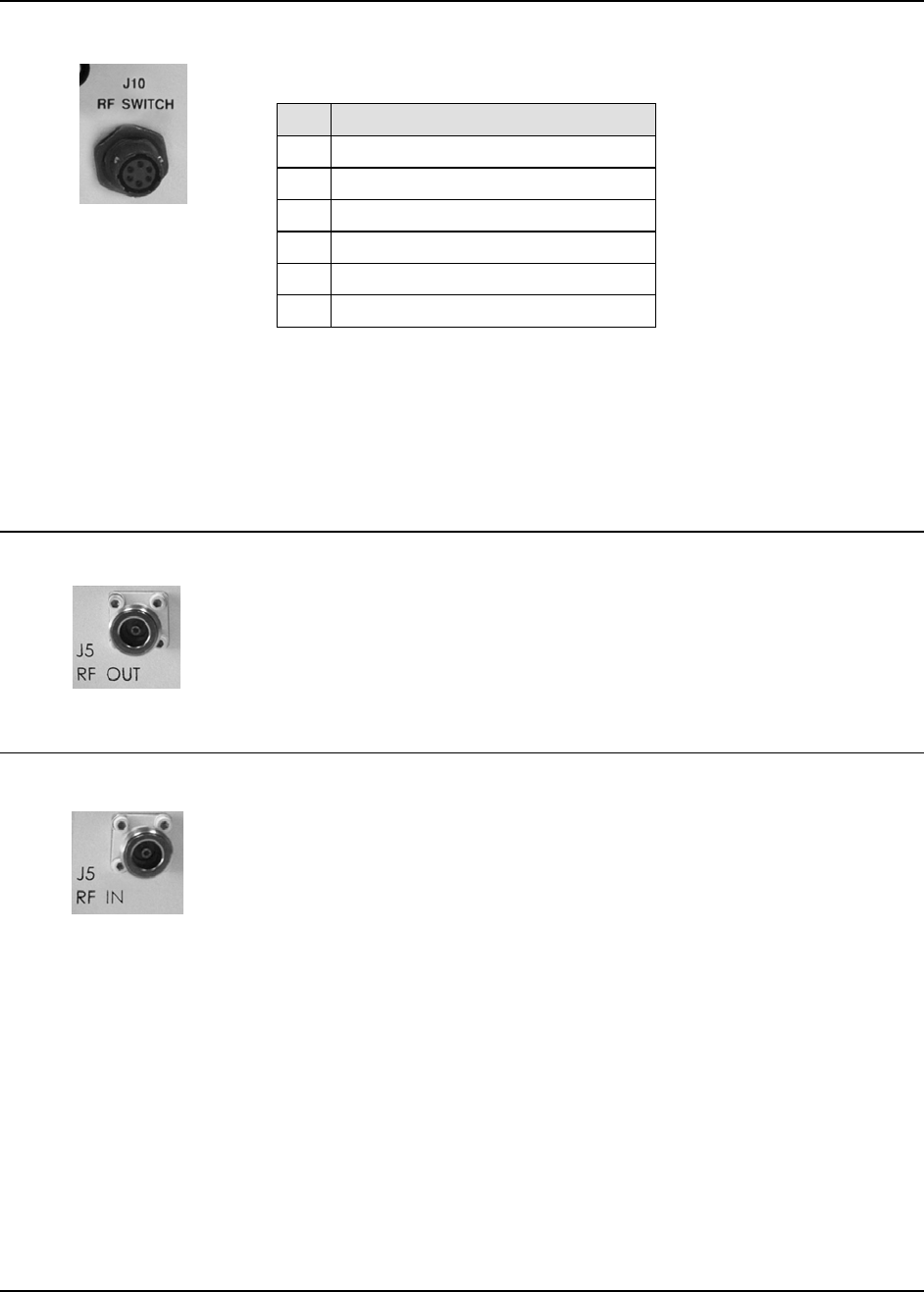

3.2.2.4 RF SWITCH (J10)

Table 3-11. RF Switch (J10) Connector Pinouts

Pin Signal

A POS 1 RF

B GND

C POS 2 RF

D POS 1 IND RF

E GND

F POS 2 IND RF

NOTE – Mating Connectors:

CEFD P/N CN/MS3116J10-6P

(Cannon MS3116J10-6P)

3.2.2.5 RF OUT (J5, BUC-4000 ONLY)

The J5 RF OUT connector, located on the BUC-4000 Block Up Converter Module,

is a Type ‘N’ female connector, used to provide the upconverted RF Output.

3.2.2.6 RF IN (J5, BDC-4000 ONLY)

The J5 RF IN connector, located on the BDC-4000 Block Down Converter Module,

is a Type ‘N’ female connector, used to provide RF Input for the downcoverter.
