CDM-800 Gateway Router Revision 1

Rear Panel Connections MN-CDM800

3–10

3.3 CDM-800 Ground and Power Connections

3.3.1 Chassis Ground Interface

 PROPERGROUNDING PROTECTIONISREQUIRED.Theequipmentmustbeconnected

totheprotectiveearthconnectionatalltimes.Itisthereforeimperativethattheunit

isproperlygrounded,usingthegroundstudprovidedonthe unit rear panel, during

installation,c onf igur atio n,andoperation.



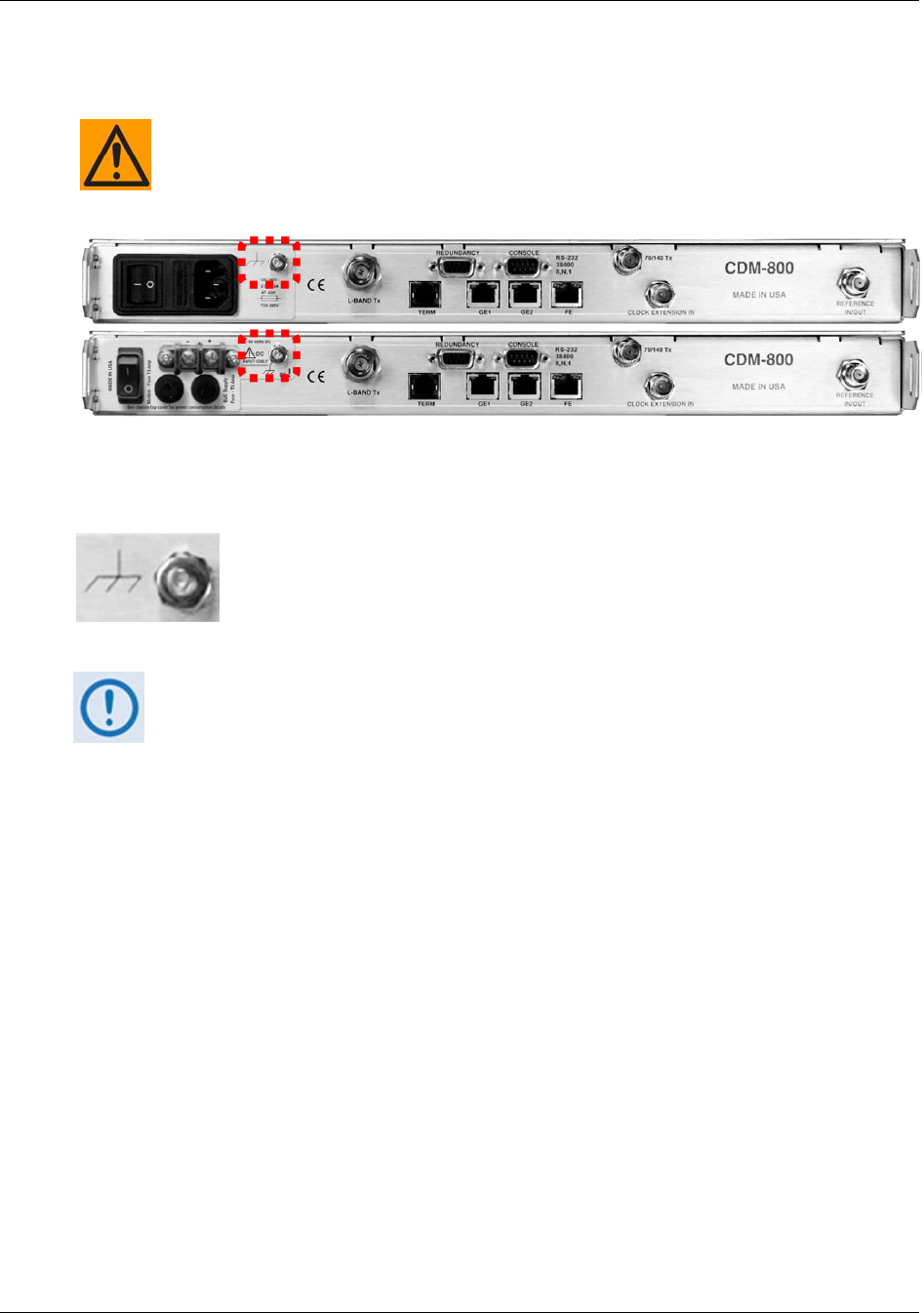

Figure 3-4. CDM-800 Chassis Ground Interface

 Usethe#10‐32stud,loca

tedadjacenttothepower

interface,forconnecting

acommonchassisgroundamongequipment.



TheACpowerinterfaceprovidesthesafetyground.



(Top) Standard AC Unit

(

Bottom

)

Optional 48V DC Unit
