OM20 Universal Outdoor Modem Appendix B
MN-OM20– Revision 5 B–5

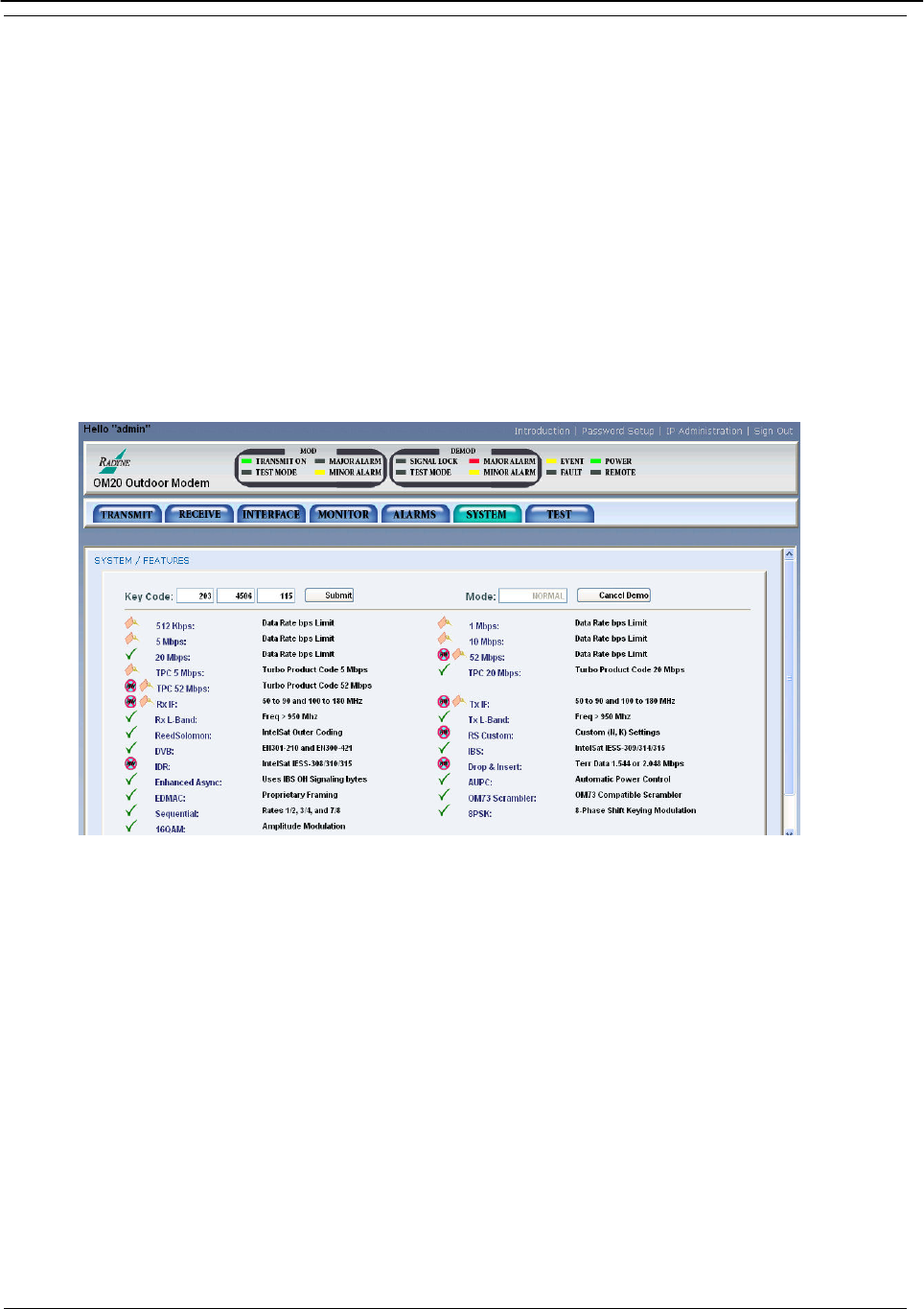

B.6 Web Browser Software Upgrade
B.7 Monitor and Control
All modem settings can be monitored and controlled through the browser based on the user
access rights. The goal is an easy-to-use navigation scheme that would enable users to view
current modem status and easily access the modem’s controls.
1. From the modem introduction page, click the MONITOR & CONTROL tab.
2. If not already logged on, enter your username and password on the logon popup, and
then press the Enter key.
